Reliable Compressed Air Hose for Industrial Air Supply
Our compressed air hose range delivers stable airflow for workshops, assembly lines, and automated systems. Each line balances flexibility, kink resistance, and durability under continuous pressure. Built with strict material control and full-process inspection, these pneumatic hoses limit pressure drop and resist abrasion and oil mist. They perform across wide temperature ranges to keep compressors and tools efficient.
What is a Compressed Air Hose?
A compressed air hose is a flexible conduit that carries pressurized air from compressors to tools and devices. Common materials include PU, rubber (EPDM/NBR), hybrid PU/PVC, and PTFE. Reinforcement options handle working pressure, spikes, and mechanical stress.
Advantages and Manufacturing Capabilities
We bring 13 years of fluid-handling manufacturing and export to 50+ countries. Materials are traceable, with one-to-one customization and responsive support. Builds can address static dissipation, flame and oil resistance, and extreme temperatures. Samples and third-party test reports are available.
Types of Hoses for Compressed Air
- Polyurethane (PU) Air Hose Lightweight, highly flexible, and abrasion resistant with low memory. Ideal for handheld tools, reels, and cold environments.
- Reinforced PU Hose Textile or braid reinforcement increases working pressure and collapse resistance for robotic arms and mobile tools.
- Recoil PU Air Hose Coiled designs retract automatically to save space and reduce tripping risks.
- High-visibility and Anti-spark Options High-vis jackets aid line recognition. Anti-spark covers and static-dissipative builds reduce ignition risks near grinding or welding.

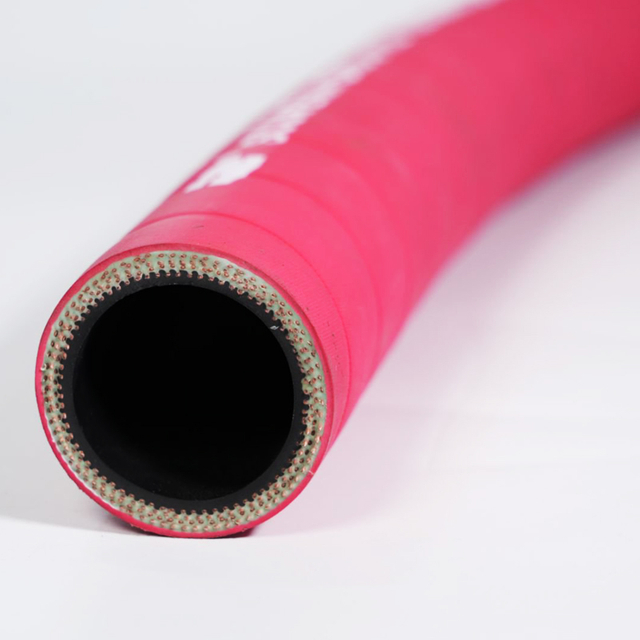

- Rubber (EPDM/NBR) Air Hose Robust flexibility with strong heat and ozone resistance. EPDM handles weathering and temperature cycles; NBR resists oil mist common in compressor systems. For related constructions, see our Industrial Rubber Hose portfolio.
- Oil-mist Resistant Rubber Air Line Maintains integrity and elasticity in the presence of compressor oils and lubricants.
- Non-conductive and Antistatic Options Non-conductive designs lower electrical hazards; static-dissipative builds safely bleed off charge in dust- or solvent-prone areas.
- Hybrid PU/PVC Air Hose Cost-efficient with better cold-weather handling than straight PVC and improved wear for general-purpose use.
- PTFE and Corrugated PTFE Air Hose Ultra-smooth bores for purity, broad chemical resistance, and operating ranges from cryogenic to elevated temperatures.
Technical Specifications
- Working pressure and safety factor: Typically 10–30 bar (145–435 psi) with 3:1 or 4:1 safety factors, depending on construction. Each hose is burst-tested and checked for pressure stability.
- Temperature ranges (by material): PU approx. −40°C to +60°C; EPDM approx. −40°C to +120°C; NBR approx. −20°C to +90°C; PTFE approx. −70°C to +260°C. Actual limits depend on wall and reinforcement.
- Sizes and reinforcement: IDs from 4–51 mm (3/16"–2"). Options include polyester braid, high-tensile textile, or steel wire to balance weight, bend radius, and pressure.
- Electrical properties: Available as static-dissipative, antistatic, or non-conductive.
Hose Assemblies and Fittings
- End connections: NPT/BSP male or female ends, quick couplers, swivels, and clamps. Calibrated crimping with optional strain reliefs, protective springs, and guards.
- Testing and documentation: Assemblies can be pressure-tested with video verification. Traceable materials and inspection records are available, with third-party testing on request.
Applications
- Manufacturing and Assembly Lines Stable pressure and kink resistance improve tool response. Abrasion-resistant covers endure floor and fixture drag. For extreme abrasion zones, see Wear-Resistant Heavy Pressure Hose for Mining & Construction to understand cover technologies used where needed.
- Automotive and Robotics Lightweight PU reduces operator fatigue. Reinforced builds hold flexibility under repetitive motion on robotic axes.
- Food, Beverage, and Medical Grade Air FDA-compliant materials support oil-free lines and blow-off where incidental contact may occur. Smooth bores help minimize particle shedding.
Selection and Safety Guide
- Match media, pressure, temperature, environment, and duty cycle to the material and reinforcement.
- In static- or spark-sensitive areas, specify antistatic covers and grounding paths, or use non-conductive designs. High-vis jackets improve line awareness.
Installation and Maintenance Tips
- Respect minimum bend radius, avoid tight clamps at fittings, and route away from sharp edges and hot surfaces. Use strain reliefs and reels to prevent kinks and whipping.
- Inspect for abrasion, cuts, blisters, bulges, and fitting integrity. Store cool and shaded. Replace at planned intervals based on duty and inspection results.
Compliance and Documentation
Materials and constructions can be supplied to meet international standards, including food-contact and low-emission options for sensitive environments.
Why Choose Us
Large-scale production, controlled raw materials, and stable processes support consistent quality and short lead times. Proven applications include oil-resistant shop air and low-temperature lines in wind power sites. We offer samples, optional third-party reports, production updates, and post-production testing with video verification.
FAQs
PU vs rubber: which should I choose?
PU is lighter, more abrasion-resistant, and stays flexible in the cold, making it ideal for handheld tools and reels. Rubber suits heavy-duty, hot, or ozonated areas.
Can it carry gases other than air?
Most variants handle inert gases. Confirm compatibility for oxygen or reactive gases. For purity or high temperature, consider PTFE.
Which size fits my compressor and tools?
Match ID to required flow and keep hose length reasonable to limit pressure drop. Use 1/4"–3/8" for light tools; 1/2" and above for high flow or long runs. Verify coupling type.
Contact our Compressed Air Hose supplier team to request a quote.
