Industrial Water & Steam Hose Solutions
This range is engineered for safe transfer of hot water and saturated steam in demanding environments. Constructions balance heat tolerance, pressure stability, and flexibility for washdown, sterilization, steam cleaning, and process heating. We align designs with your temperature, pressure, media, routing, and compliance needs, and provide testing, certification, and transparent execution.
Key advantages
- Heat resistance and safety: Compounds resist hardening and blistering. Appropriate safety factors and temperature derating reduce bursting risk under thermal cycling.
- Pressure stability: Fiber braid or multi‑layer steel wire reinforcement supports rated pressure at operating temperature. Covers help prevent kinking and abrasion while keeping a practical bend radius.
- Chemical and abrasion performance: EPDM handles hot water, condensate, and common cleaners. PTFE liners improve chemical resistance, reduce scale, and support cleanability. Wear‑resistant covers extend service in refineries, mining, and plants.
- Electrical properties: Non‑conductive or static‑dissipative options help manage electrical hazards near equipment during cleaning and transfer.
- Handling: Smooth or corrugated covers balance reel use, cleanability, and flexibility for quick routing and installation.
Materials and construction
- EPDM tubes and covers: A robust choice for hot water and saturated steam in plant service, washdown, and sterilization.
- PTFE‑lined designs: For corrosive or purity‑critical media, with low permeability and easy cleaning; suitable for hot water and intermittent steam.
- Reinforcement options: Dual fiber braid or steel wire spiral to meet working pressure and impulse demands at temperature.
- Cover types: Corrugated for flexibility, wear‑resistant for rugged areas, and flame‑retardant to align with site requirements.
Product range and typical specs

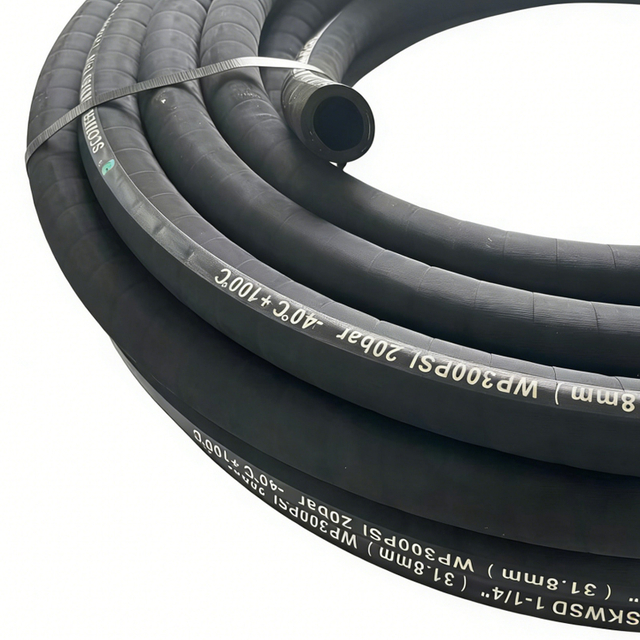

- Hot water hose (industrial):
- Temp range: from sub‑zero to elevated hot water service
- Pressure: configured for washdown and utilities
- Sizes: common industrial IDs; options to meet hygiene/material standards

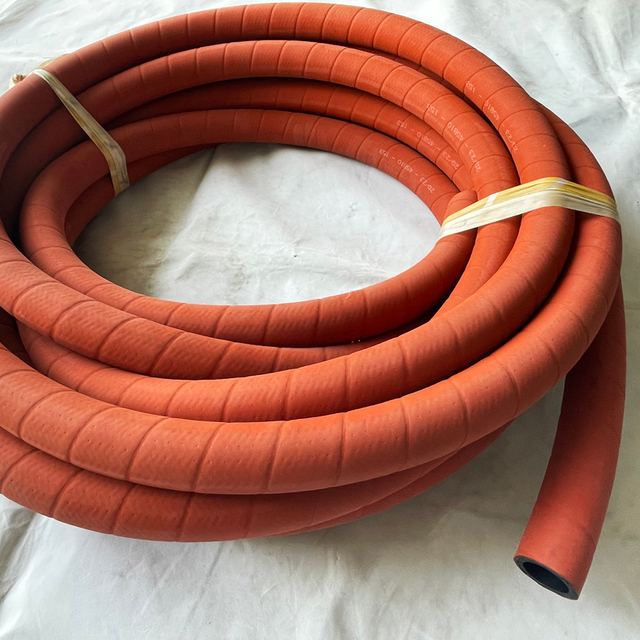

- Hose for saturated steam:
- Temp: suitable for saturated steam with derating near upper limits
- Pressure: set with steam‑specific safety factors
- Couplings: steam‑rated fittings and clamps are required
- High‑pressure option:
- Food‑grade hot water/steam:
- Materials: FDA‑compliant EPDM and PTFE‑lined variants
- Documentation: inspection reports and test videos available
- Non‑conductive variants:
- Dielectric properties for use near electrical equipment
Use and maintenance guidelines
- Apply temperature–pressure derating at higher temperatures to extend service life.
- Always use steam‑rated couplings, clamps, and gaskets compatible with the tube and cover. Follow proper assembly torque.
- Inspect for soft spots, blistering, and cover wear. Perform periodic pressure testing with recorded results.
- Follow lockout procedures and PPE. Vent and drain condensate to minimize water hammer and thermal shock.
- Note: Superheated steam may require special materials and validation; consult before selection.
Applications
- Petrochemical and oil & gas: steam cleaning, line heating, and hot water service with abrasion‑resistant covers.
- Food processing and sterilization: sanitation and intermittent steam using cleanable liners and food‑grade compounds.
- Automotive and workshops: steam cleaning and washdown with flexible routing.
- HVAC and refrigeration: hot water near heat exchangers; non‑conductive options around electrical systems.
- Energy and maintenance: cleaning and de‑icing in variable climates with robust covers.
Hose assemblies and services
- Ready‑to‑use assemblies: Pre‑assembled lines with steam‑rated couplings, clamps, and gaskets reduce installation time.
- Food‑grade EPDM assemblies (fiber or steel reinforced): Balanced flexibility and strength for sanitation and intermittent steam.
- PTFE‑lined assemblies: Combine heat tolerance with chemical resistance for cleaners and high‑purity service.
Customization, testing, and documentation
- We translate media, temperature, pressure, routing, and compliance needs into fit‑for‑purpose builds.
- Support includes traceable materials, international certifications, sample pre‑evaluation, third‑party tests, inspection reports, and test videos.
- Orders are tracked with staged progress updates from definition to delivery, followed by performance verification. Contact our water & steam hose manufacturer team to request a quote.
Related category: Explore more options in our Industrial Rubber Hose lineup.
FAQ
Q: Can these hoses handle superheated steam?
A: Standard designs target hot water and saturated steam. Superheated service may require special materials and validation. Please consult before use.
Q: What couplings should be used for steam service?
A: Use steam‑rated couplings, clamps, and gaskets that match the hose materials and size. Follow specified torque and retention practices.
Q: How often should hoses be inspected and pressure‑tested?
A: Perform visual checks before each use and schedule periodic pressure tests per site policy and local regulations. Keep records to verify performance.
