Food Hose for Sanitary Liquid Transfer: Overview
These hoses are engineered for hygienic transfer of liquids and semi‑liquids in dairy, beverage, brewery, winery, juice, syrup, and edible‑oil processes. The range supports odorless, non‑toxic flow, reliable suction and discharge, and easy cleaning in CIP workflows. Designs are validated through rigorous testing and full traceability from compounds to finished assemblies. See a representative build: Sanitary Food Hose for Food Processing Lines.
What Defines a Food‑Grade Hose
- Smooth‑bore liners (EPDM, PTFE, UHMWPE) minimize residue and aroma transfer.
- Peroxide‑cured compounds and migration‑compliant formulations help protect taste.
- Covers resist abrasion and ozone; optional anti‑static paths control charge in sugar‑ or alcohol‑rich media.
- Structures are designed for cleanability and durability through repeated cleaning cycles.
Typical Applications
Used in transfer lines, loading bays, and process hookups for:
- Milk, beer/wort, wine, juice, syrup, water, edible oils
- Flavorings and compatible cleaning chemicals
- Suction service and pressurized discharge
Product Range for Hygienic Transfer Hoses
Material families and constructions are matched to media, temperature, and hygiene needs. For broader rubber options and related covers, see Industrial Rubber Hose.

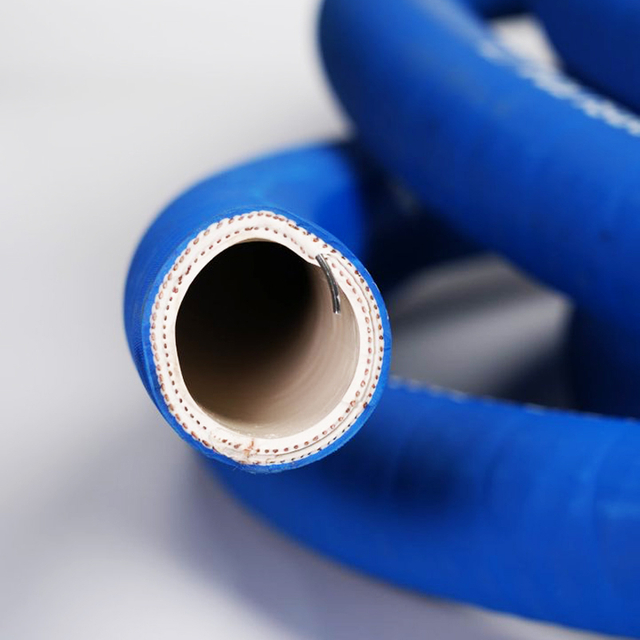

EPDM Food‑Grade Hose (Liquid Transfer, CIP Ready)
Peroxide‑cured EPDM liners suit water‑based media, dairy, and cleaning agents while maintaining flexibility at low temperatures. A featured option: FDA‑Certified Liquid Food Hose for Beverage & Dairy Processing.
- Smooth EPDM liner; textile and/or wire reinforcement for vacuum duty
- Approx. −30°C to +120°C (intermittent steam where specified)
- Common IDs 19–102 mm; typical working pressure 10–20 bar by size
PTFE Hygienic Hose (High Purity, High Temperature)
- Virgin PTFE liner; optional conductive PTFE for alcohol‑rich or solvent media
- Approx. −70°C to +260°C with broad chemical resistance
- Smoothbore for low pressure drop; corrugated for flexibility; stainless‑steel braid options
PVC Steel Wire Reinforced Hose (Transparent Flow)
- Food‑grade PVC tube with steel wire helix for crush resistance
- Visual confirmation of flow for bottling/filling lines; light suction capability
- Approx. −5°C to +65°C; phthalate‑free options available
UHMWPE Transfer Hose (Anti‑Static Option)
- Low‑permeation liner for acidic juices, concentrates, and sugary media
- Optional conductive layers or bonded wire for safe alcohol transfer
Assemblies and Sanitary Connections
Factory‑crimped assemblies are available with 304/316 stainless steel tri‑clamp, DIN, SMS, camlock, or RJT fittings. Precision crimping promotes crevice‑free transitions for hygiene. Each assembly can be hydrostatically tested and visually inspected, with video reports and traceable batch IDs for audits.
Compliance and Traceable Quality
Products are designed to meet FDA CFR 21 and EU 10/2011 food‑contact requirements, with optional 3‑A sanitary configurations. Controlled raw‑material sourcing, in‑process inspections, and third‑party testing support consistent quality. Pre‑evaluation against your media and cleaning regime is available, with documented guidance.
Selection Guide: Choosing the Right Hose
- Media and Temperature: Water‑based vs. fatty media; acid/alkali level; alcohol content; operating range and cleaning excursions
- Pressure, Vacuum, Flexibility: Working/burst pressure, full‑vacuum needs, bend radius and routing constraints
- Hygiene and Cleanability: Smooth‑bore vs. corrugated; non‑stick liners; residual and odor control
- Fittings and Assembly: Tri‑clamp, DIN/SMS, camlock, RJT; factory crimping for hygienic transitions
Performance Snapshot
- Temperature Ranges: EPDM ~ −30°C to +120°C; PTFE ~ −70°C to +260°C; PVC ~ −5°C to +65°C
- Size Range: Common IDs 6–102 mm; larger sizes on request
- Pressure/Vacuum: Working pressure and vacuum capability set by reinforcement (textile, wire helix, braid)
- Electrical: Non‑conductive designs or static‑dissipative paths for alcohol‑ or solvent‑rich media
Project Support and After‑Sales
Receive responsive application support, documented testing, stable lead times, and global logistics. With over a decade in fluid transfer and exports to 50+ countries, we provide reliable supply and certifications. Contact our Food Hose manufacturer team to discuss specifications or request a quote.
