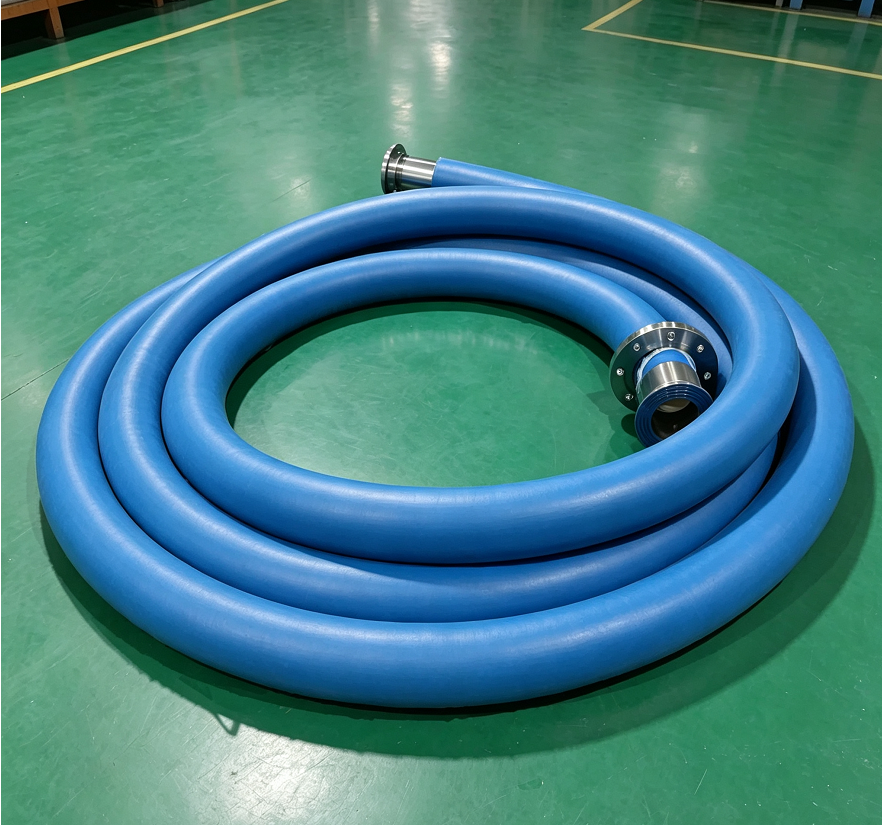

1. FDA-Compliant EPDM Tube – Food-Safe by Design (FDA food grade hose) The white high-temperature EPDM tube of this FDA food grade hose is smooth, dense, non-toxic and odorless, so it neither absorbs nor releases flavors that could taint milk, juice or soft drinks in transit. The bore is easily disinfected with hot water or a 5% soda solution, keeping sanitation costs low on busy processing lines.

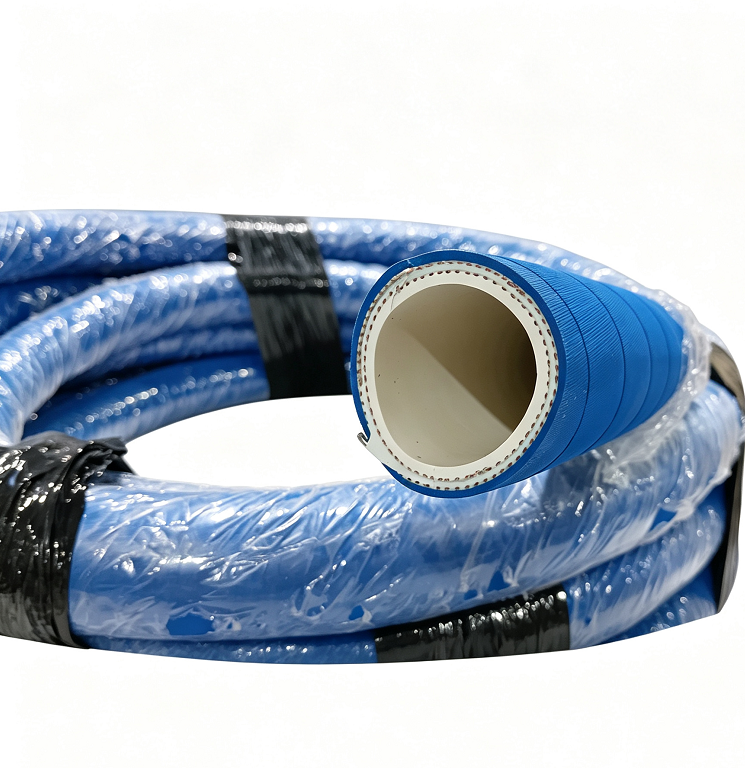

2. Steel-Wire Reinforced – True Suction and Discharge Duty (food grade suction and discharge hose) Two high-strength textile plies with an embedded spiral steel wire enable this food grade suction and discharge hose to handle full-vacuum suction as well as pressurized discharge up to 10 bar (150 PSI). The helix resists kinking and crushing, and the 50 mm bend radius on the 1" size makes routing in tight plant spaces simple and reliable.
3. Extreme Temperature Range -40°C to +160°C (high temperature food hose) Engineered as a high temperature food hose, it withstands hot-product transfer and 160°C hot-water washdowns, yet stays flexible at -40°C without cracking. This broad window covers pasteurizing lines, hot-fill operations and chilled storage alike – one hose for hot and cold duty.
4. Ozone-, Oil- and Abrasion-Resistant Cover (food grade rubber hose) The blue EPDM cover resists ozone, oil splashes, abrasion and repeated washdown with cleaning agents. It will not crack or harden under UV exposure or in humid plant atmospheres, which measurably extends the service life of this food grade rubber hose and reduces unplanned downtime.

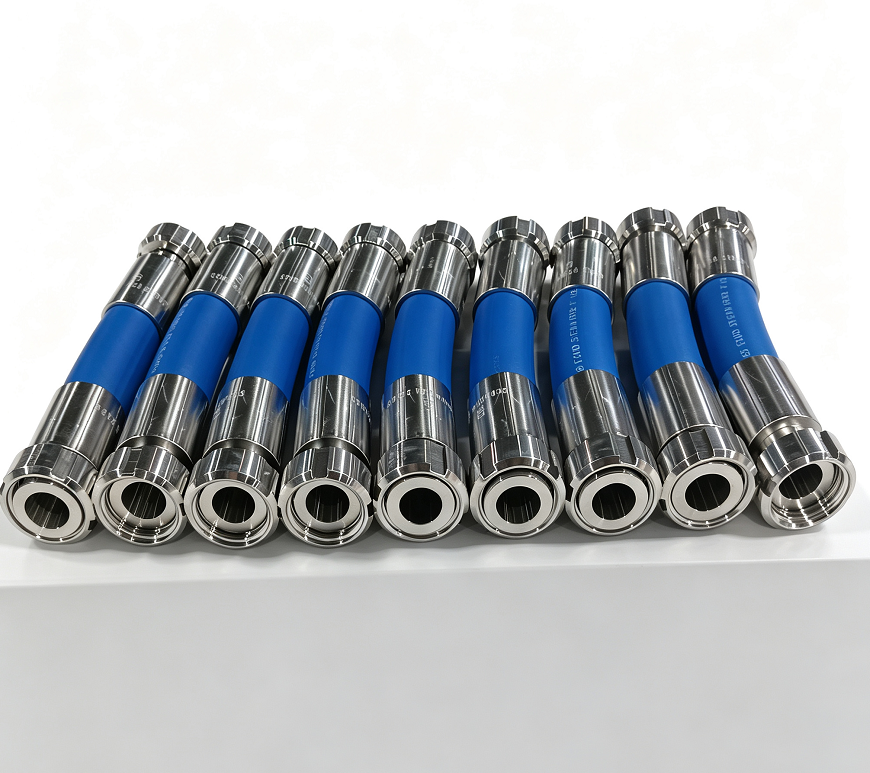

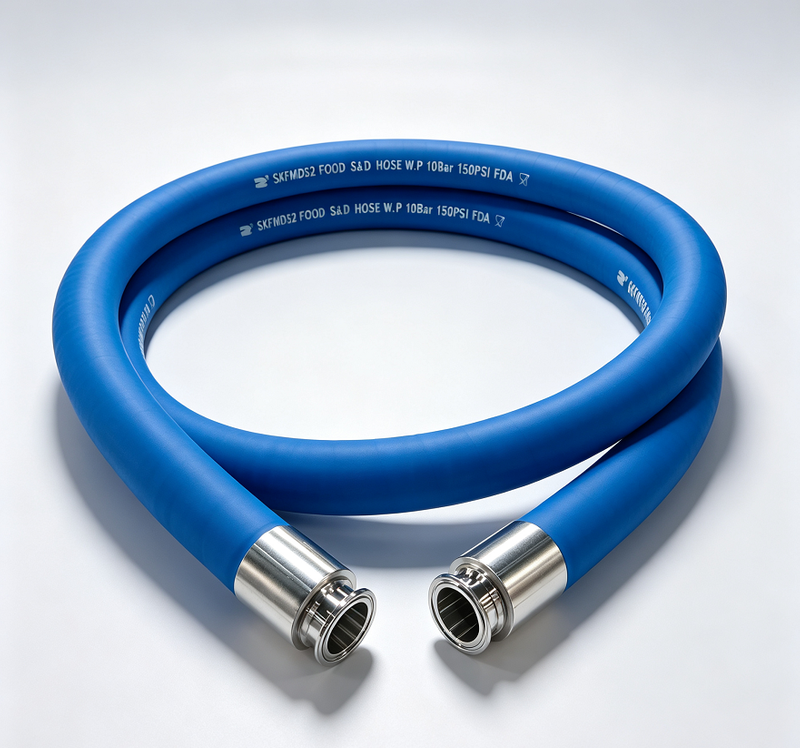

5. Factory-Crimped Tri-Clamp Assemblies, Custom Made (food hose with tri-clamp fittings) Available as custom food hose assemblies with 304/316 stainless steel tri-clamp, DIN, SMS, camlock or RJT fittings, precision-crimped at the factory and hydrostatically tested one by one with test reports. Length, end fittings and print marking are all customizable, with OEM/ODM service for equipment builders and distributors.
1. Dairy Plants – Milk Transfer Hose Duty (milk transfer hose) Moves milk and cream from the receiving bay to storage silos, pasteurizers and filling lines. The smooth food-contact bore resists product buildup, and routine disinfection with a 5% soda solution meets the daily hygiene demands of dairy processors, making it a dependable milk transfer hose.
2. Breweries & Wineries (brewery hose / wine transfer) Transfers beer, wort, wine and cider between fermentation tanks, bright tanks and filling stations. The EPDM tube tolerates alcohol without odor pickup, and stainless end fittings couple quickly to tank ports – a practical brewery hose for cellar and packaging areas.
3. Beverage & Juice Filling Lines (beverage hose) Handles soft drinks, fruit juice, syrup and potable water in batching and filling service. The smooth, low-friction bore delivers high flow rates, minimizes residue and inhibits bacterial growth, supporting continuous production and effective in-line cleaning.
4. Food Plant Bulk Loading & Tanker Transfer (food transfer hose / bulk S&D) Bridges silos, mixing rooms and road tankers for bulk loading and unloading of liquid foodstuffs. The steel-wire helix provides dependable suction during unloading and pressurized transfer during loading, while the flexible body coils easily for vehicle storage and repeated handling.
5. High-Hygiene Transfer & Process Hook-Ups (sanitary food hose) Connects mixers, filters and filling equipment for non-oily sauces, liquid sugar and flavorings. Optional tri-clamp terminations create smooth, crevice-free transitions that dismantle quickly for inspection – meeting sanitary food hose requirements in strict food plants.
Q1: Is this hose FDA approved? Can it transfer milk, beer and juice?
Yes. This is an FDA food grade hose: the white EPDM tube is non-toxic, odorless and non-migrating, and it is suitable for non-oily liquid foods such as milk, beer, wine, juice and soft drinks. For oily or high-alcohol media, please share the product details and we will recommend the correct grade.
Q2: What temperature and cleaning regime can it handle?
Operating range is -40°C to +160°C at a 10 bar (150 PSI) working pressure. As a high temperature food hose, it tolerates hot product and 160°C hot-water washdown; routine cleaning with a 5% soda solution or mild detergent is recommended, and the smooth bore flushes clean with minimal residue.
Q3: Can you supply hose assemblies with tri-clamp fittings? What about lengths and MOQ?
Yes. We manufacture factory-crimped assemblies with 304/316 stainless steel tri-clamp, DIN, SMS or camlock fittings, each hydrostatically tested with a test report. Length, fittings and hose marking are customizable across the full 1"–4" range; send your target length and quantity for a quotation within 24 hours and our MOQ terms.
