Product Advantages
✅ Superior Oil & Gas Resistance: Made with RMA-A grade NBR nitrile inner tube, it offers excellent gas tightness and compatibility with lubricants, fuels, and petroleum products, preventing leaks and aging.
✅ Ultimate Weather & Aging Resistance: The CSM chlorosulfonated polyethylene cover provides outstanding ozone and abrasion resistance, withstanding 200 hours of high-temperature ozone testing without cracks for long-term outdoor use.
✅ Automation-Ready Construction: Single-layer polyester fiber braid reinforcement ensures high flexibility and kink resistance in drag chains and robot arms, with strong, secure connections to prevent dislodging.

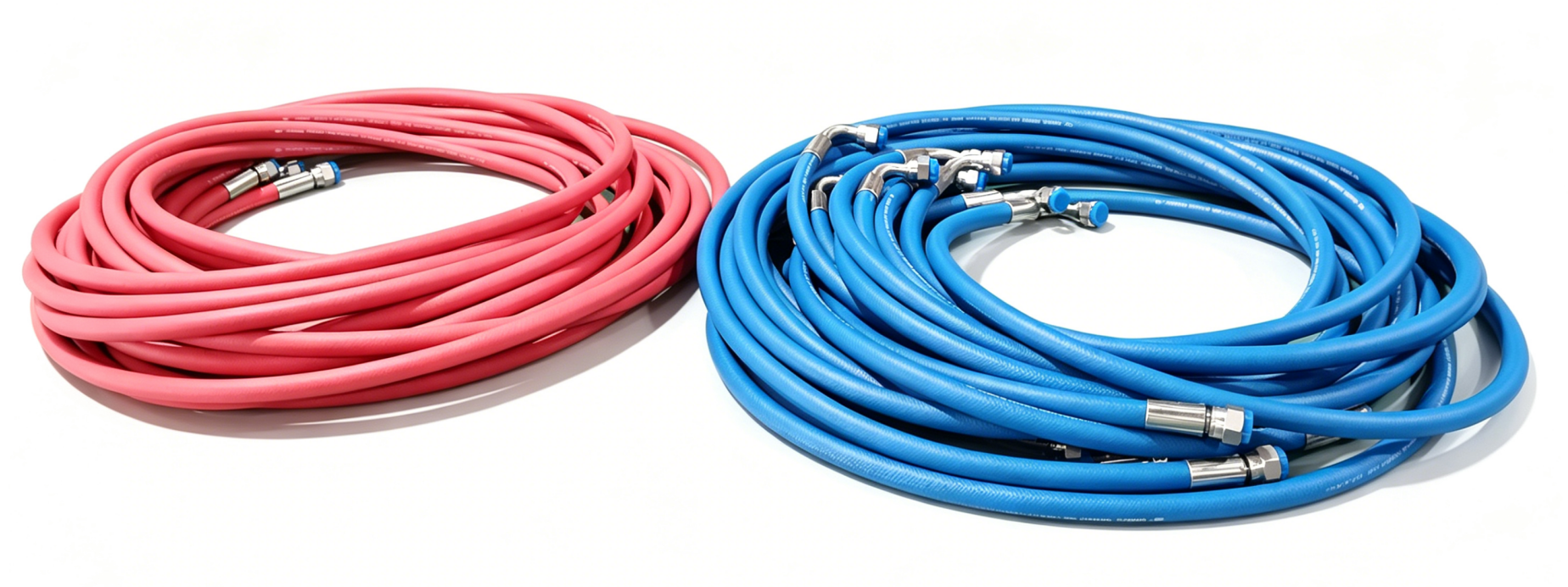

✅ Full Customization Options: Anti-static/conductive customization available, with color choices (black/red/blue/green/yellow) and compatibility with quick connect fittings for ready-to-use assemblies.
✅ Wide Temperature Stability: Standard range -40℃~120℃, with optional high-temperature versions up to 150℃, suitable for all industrial environments from extreme cold to high heat.
Application Scenarios
Industrial Automation Systems: Ideal for robot arms, drag chains, automotive production lines, and machine tool cooling systems, offering flexibility and kink resistance for continuous automated operation.
⚙️ Low-Pressure Hydraulic & Fluid Transfer: Suitable for hydraulic oil, coolant, and lubricants in low-pressure hydraulic systems, ensuring reliable sealing and minimal pressure loss.
Fuel & Petroleum Product Handling: Compatible with diesel, gasoline, kerosene, and petroleum products with up to 50% aromatic content, with stable oil resistance and no swelling.
Pharmaceutical & General Industry: Safe for water, air, and mild chemicals, meeting industrial hygiene standards for welding, material handling, and pharmaceutical applications.
FAQ
Q1: Can this industrial rubber hose assembly be customized to anti-static versions?A1: Yes, our industrial rubber hose assembly supports anti-static/conductive customization. We can adjust the formula to suit static-sensitive fluid transfer applications while retaining the original oil and weather resistance.
Q2: How is the oil resistance of the hose? Can it handle long-term hydraulic oil transfer?A2: Absolutely. The inner tube is made of RMA-A grade NBR nitrile rubber with high-level oil resistance and excellent gas tightness. It resists swelling and leaks when transporting hydraulic oil and lubricants long-term, with double protection from the CSM cover’s RMA-B oil resistance for extended service life.

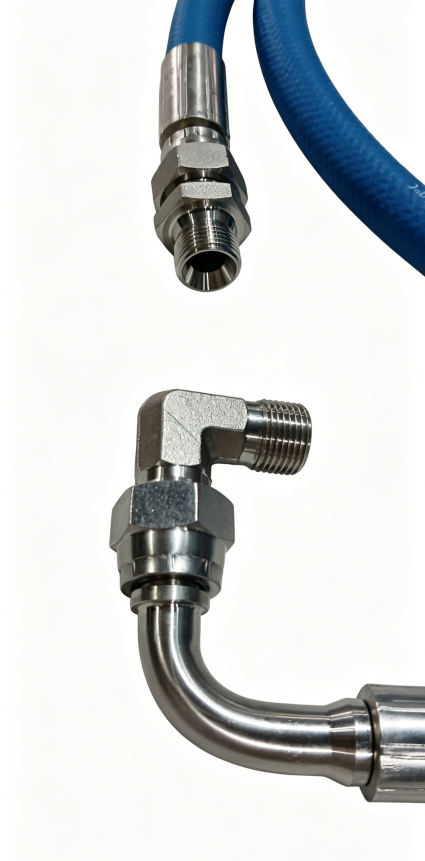

Q3: Can this hose be fitted with quick connect fittings? Are the connections secure?A3: Yes, we offer custom assembly with various standard quick connect fittings. The single-layer polyester fiber braid reinforcement is engineered with an optimized angle for strong, secure connections. It resists dislodging even under dynamic bending in drag chains and robot arms, ensuring safety and reliability.
