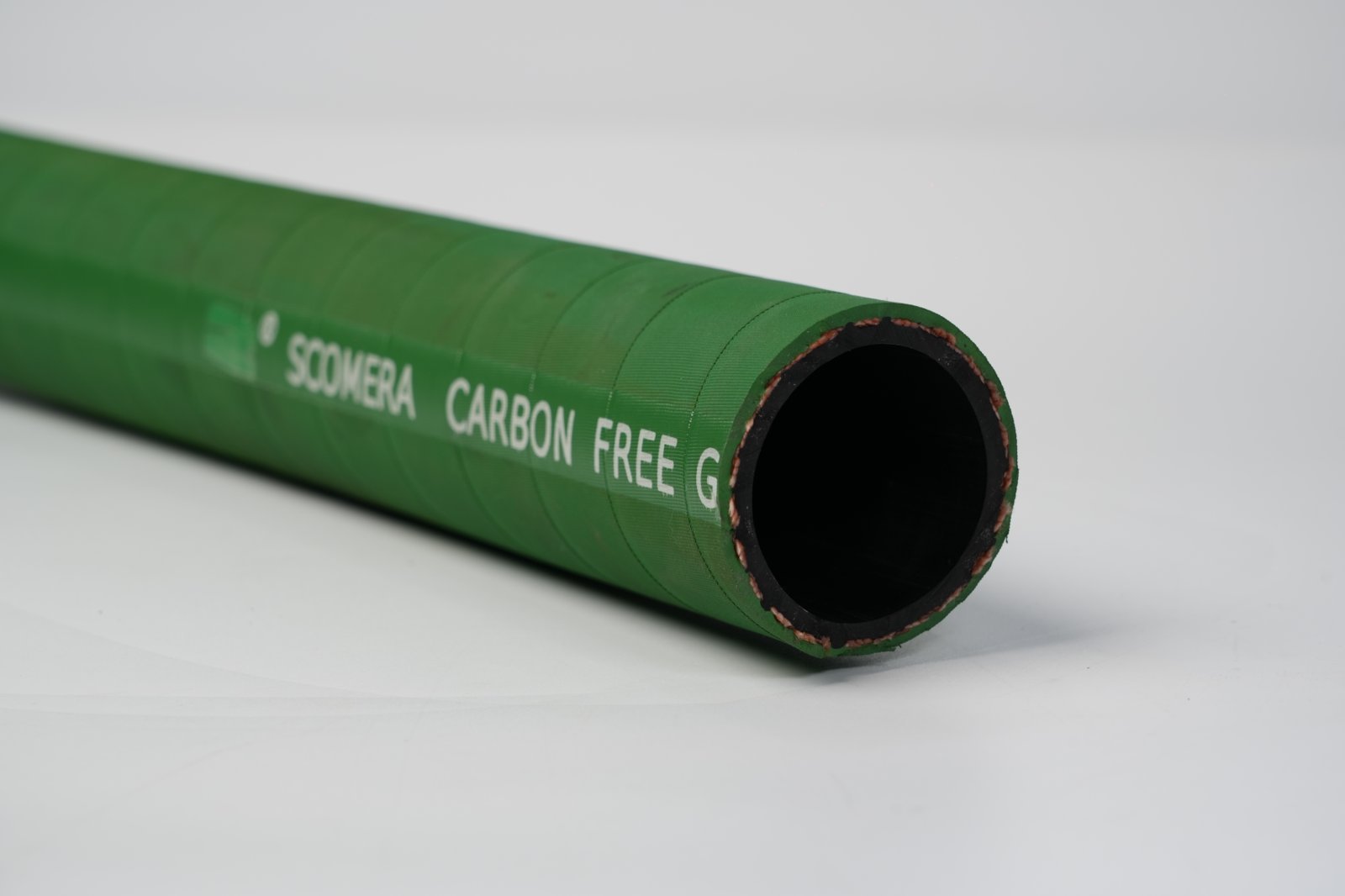

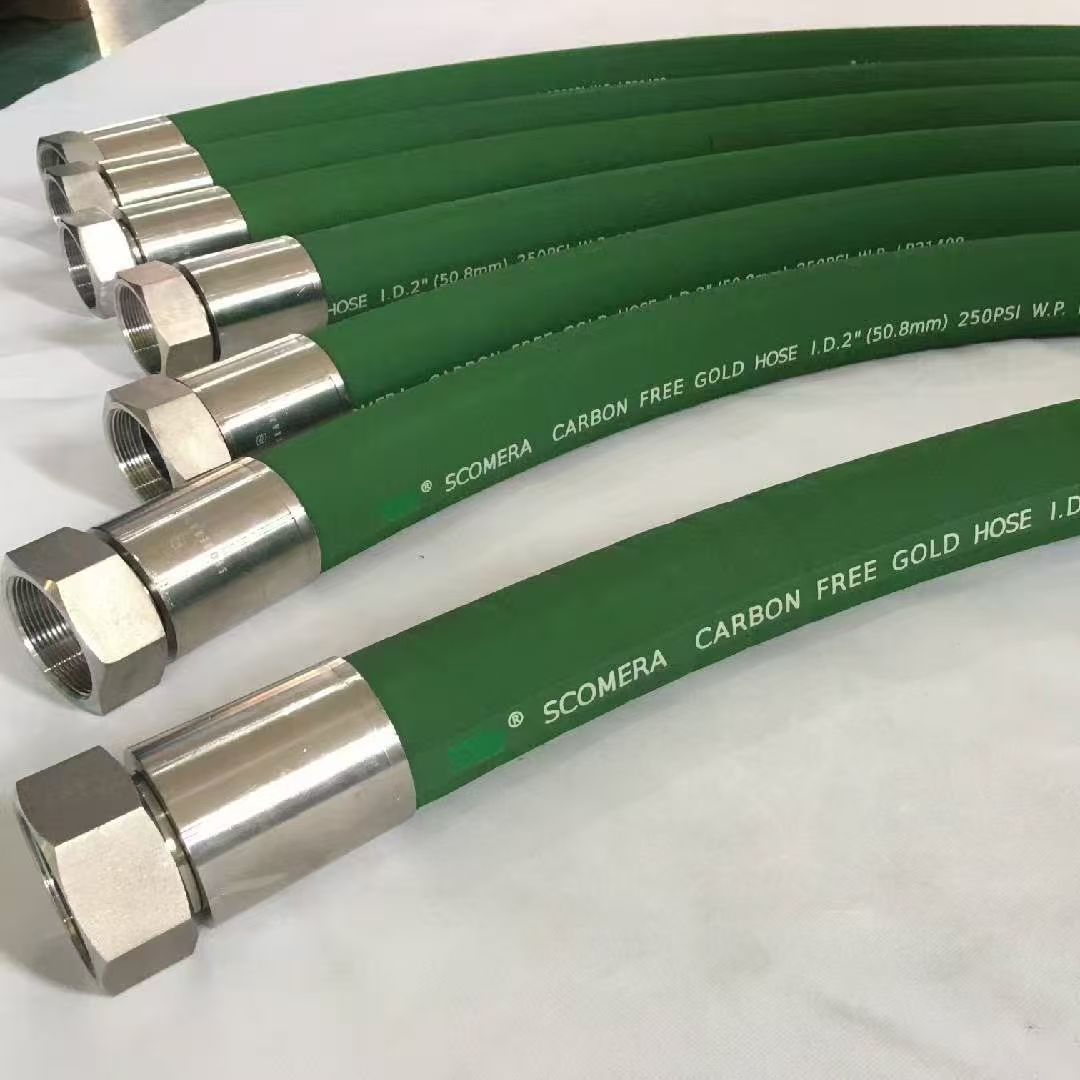

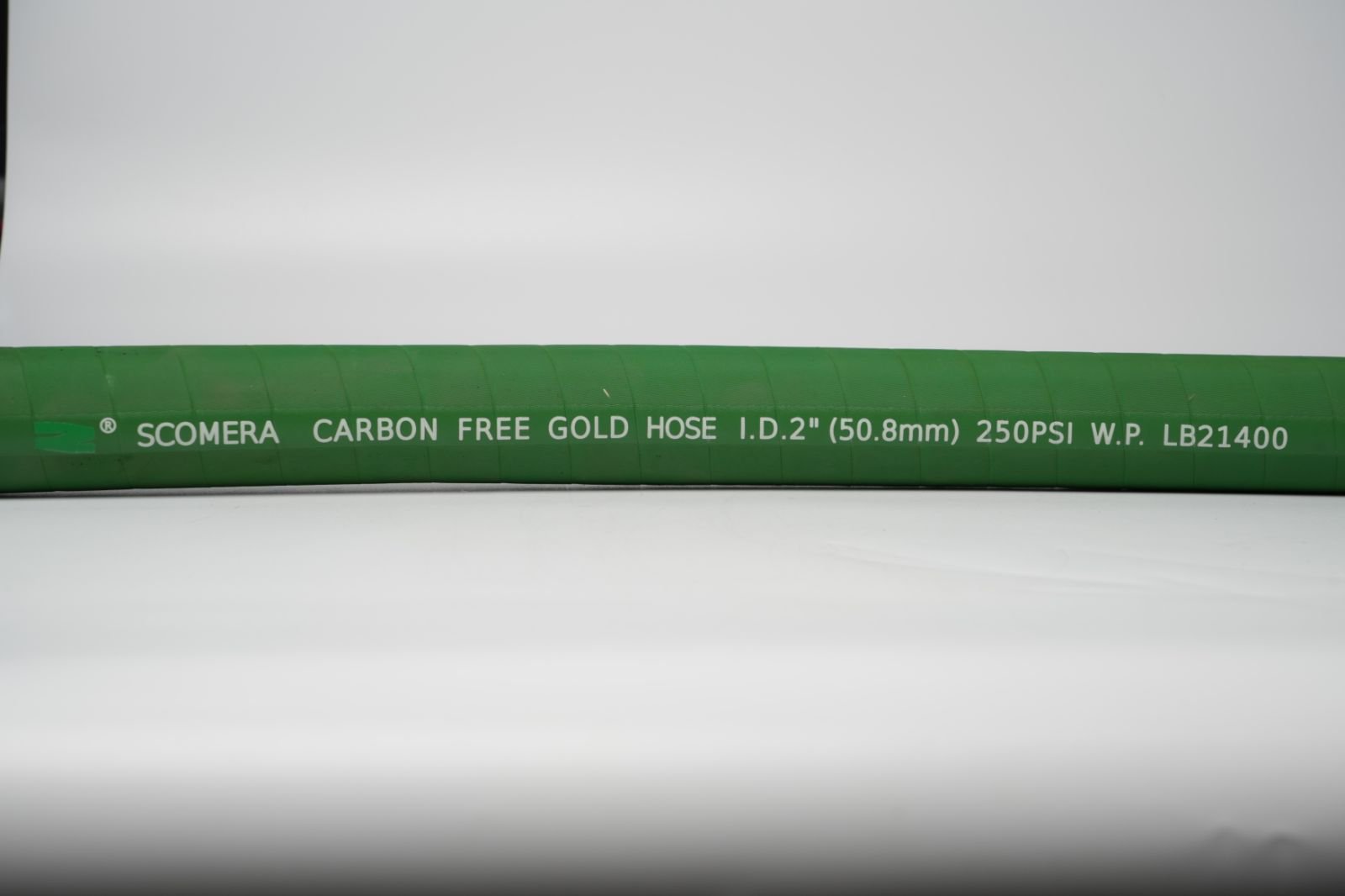

CARBON FREE GOLD HOSE is a premium grade of carbon free hose, non-conductive hose and carbon free insulating hose. It is manufactured with professional carbon-free EPDM liquid cooling tube material formula. With leakage current ≤15 microamps at 6000V DC, it is classified as a high-performance low leakage insulating hose. Featuring UL94 V0 flame retardancy, outstanding wear resistance and aging resistance, it is widely applied as wind turbine coolant hose, liquid cooling pipeline for data centers and insulating cooling hose for the steel industry. Flexible, pressure-resistant, safe and long service life, it supports bulk purchase and custom non-standard specifications.
Carbon Free Formula · Full-layer Non-conductive Insulation
Both inner and outer rubber adopt pure carbon-free EPDM compound, delivering standard performance of non-conductive hose and carbon free insulating hose. The leakage current is controlled within ≤15μA at 6000V DC with superior low leakage insulation. Designed for high-voltage working conditions of steel industry and high-voltage liquid cooling loops of data centers, it provides full insulation and breakdown prevention with stable and safe operation. Bulk orders and customized sizes are available.
Low Leakage & High Pressure Resistance · Multi-medium Compatibility
As a professional low leakage insulating hose, it adopts the special molecular structure of carbon free hose, keeping leakage steadily under 15 microamps under high voltage. Fully compatible with all cooling media for EPDM liquid cooling tube, it fits liquid cooling data center pipelines, wind power cooling loops and industrial closed cooling systems with strong adaptability in high-pressure environments.
High Flexibility & Wear Resistance · Easy Installation in Narrow Space

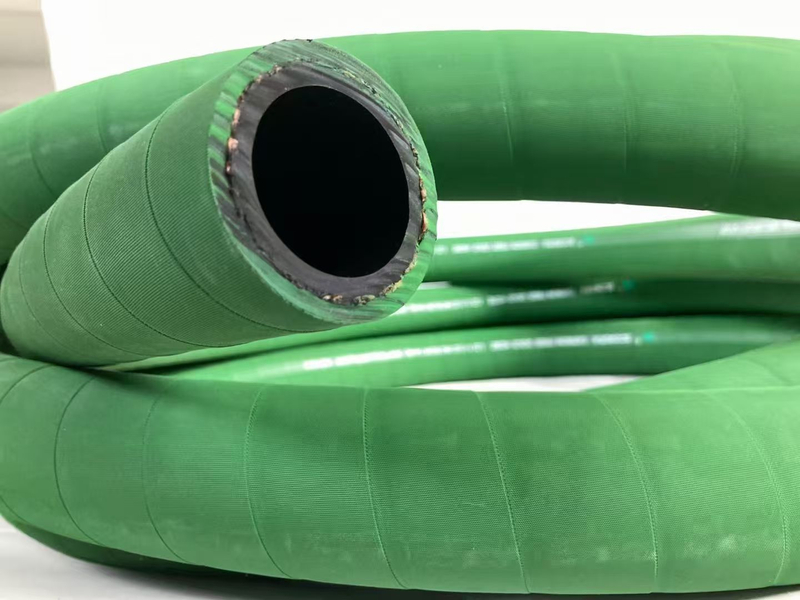

It combines dual performance of carbon free hose and non-conductive hose. The outer cover is ozone-resistant, abrasion-resistant and anti-aging. The built-in fiber reinforcement layer improves overall toughness and burst pressure resistance. Excellent bending performance allows easy routing in narrow cabinet spaces, perfectly matching installation demands of wind turbine coolant hose and dense data center pipelines, greatly extending service life.
Wide Temperature & Pressure Range · Multi-industry Universal Use

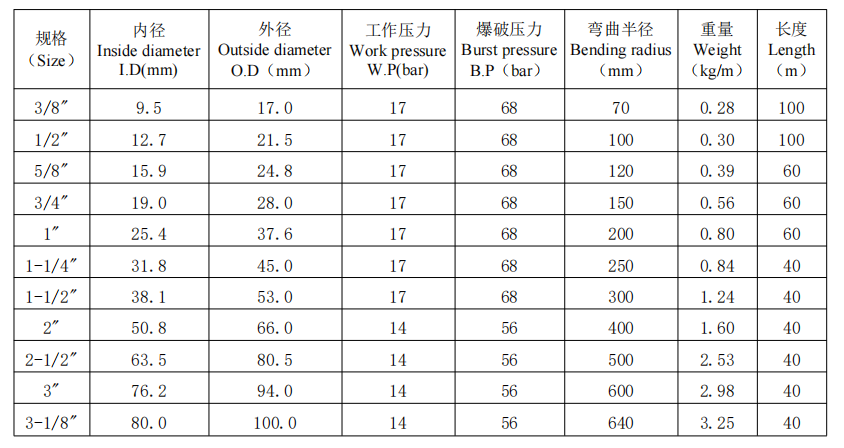

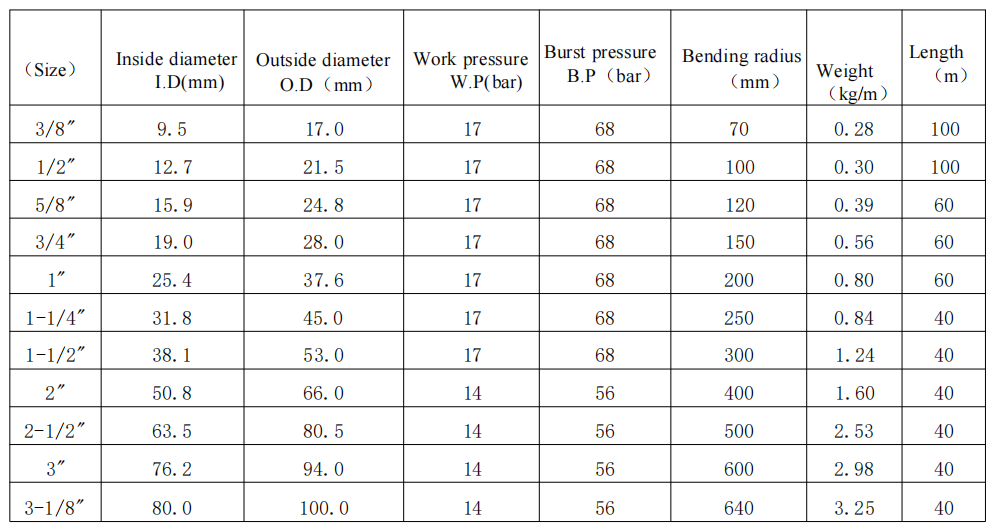

Working pressure: 150–400PSI, temperature range: -40℃~120℃, compliant with UL94 V0 flame resistant hose standard. Following universal installation specifications of EPDM liquid cooling tube, it is widely used in data center liquid cooling, wind power cooling, steel metallurgy and industrial equipment heat dissipation pipelines with reliable sealing and medium corrosion resistance.
Certified Quality · Bulk Supply & Customization Available
ISO system certified, it meets international standards of carbon free insulating hose and non-conductive hose. It satisfies large-scale procurement demands for wear-resistant cooling pipeline and liquid cooling data center hose. Customization on diameter, length and pressure grade is supported for engineering projects and long-term brand procurement.
This carbon free insulating hose is suitable for high-pressure cooling applications in multiple industries:
Data center liquid cooling systems, AI computing center cooling pipelines, wind turbine cooling loops, steel metallurgy insulating pipelines, industrial closed-loop cooling and high-power equipment heat dissipation systems. It can perfectly replace traditional EPDM liquid cooling tube, meeting strict requirements of high voltage insulation, low leakage, flame retardancy and wear resistance.
Q1: For this carbon free insulating hose, is the leakage current ≤15 microamps at 6000V DC?
A1: Fully compliant. As a high-end low leakage insulating hose, this carbon free hose is strictly controlled in raw material formula and vulcanization process. Leakage ≤15μA at 6000V DC, ideal for high-voltage insulation in steel industry and liquid cooling loops of data centers, safe for 24/7 continuous operation.
Q2: As a wear-resistant cooling pipeline, is it compatible with EPDM liquid cooling tube specifications and keeps carbon free non-conductive performance?
A2: Fully compatible. Made of standard carbon-free EPDM material with temperature resistance of -40℃~120℃ and UL94 V0 flame resistant hose grade. It integrates wear resistance, high voltage insulation and anti-aging performance, and can directly replace conventional EPDM liquid cooling tube for industrial, computing center and wind power thermal management needs.
Q3: Does this non-conductive carbon free insulating hose support bulk purchase and custom specifications?
A3: Yes, bulk procurement and personalized customization are available. With ISO certification, it covers all core features of carbon free hose, non-conductive hose, low leakage insulating hose and wind turbine coolant hose. Suitable for foreign trade bulk orders and engineering procurement, special dimensions, pressure parameters and specifications can be customized according to drawings.
