Premium Carbon-free Dielectric Safety The SKW series utilizes a proprietary carbon-free technology, making it a superior Non-conductive EPDM Hose for sensitive environments. It offers an impressive dielectric strength of up to 6000V, effectively eliminating the risk of electrical conduction within the liquid cooling loop and providing 24/7 protection for expensive GPU cores against electrolytic corrosion.
Optimized Flexibility for High-Density Cabling Engineered as a professional Server Rack Manifold Hose, the SKW maintains a tight bend radius while supporting a robust 300PSI working pressure. Its exceptional flexibility allows for complex routing within confined rack spaces without kinking or restricting critical coolant flow rates.
Superior Compatibility with Data Center Coolants Specifically designed as a Liquid Cooling Hose for Data Center applications, this hose offers excellent chemical compatibility with glycol mixtures and deionized water. The smooth, non-reactive inner tube ensures a clean secondary loop system, preventing scaling and reducing long-term maintenance costs.
Outstanding Thermal Stability & Mechanical Strength Reinforced with high-tensile polyester fiber, the hose maintains consistent physical properties from -40°C to 120°C. This thermal stability is essential for the continuous 24/7 operation of AI Infrastructure, handling the rapid temperature fluctuations common in high-load computing environments.
AI Data Center Secondary Loop Systems Serves as the primary CDU Secondary Loop Hose, providing a safe and reliable non-conductive fluid path between the Cooling Distribution Unit and the individual server racks.Perfectly compatible with our SLQC Series Liquid Cooling Quick Disconnects for a complete no-spill solution
Server Rack Manifold Connectivity Utilized within high-performance clusters as a dedicated Server Rack Manifold Hose, ensuring precise and leak-proof distribution of coolants across high-wattage cold plates.
Cooling for AI Computing Infrastructure Provides a high-insulation thermal management solution for AI Infrastructure, designed to meet the rigorous uptime and safety requirements of large-scale model training facilities.
High-Voltage Industrial Power Electronics Leveraging its properties as a high-insulation rubber hose, it is ideal for cooling water-cooled cables in induction furnaces and industrial power converters, where preventing electrical leakage through the medium is critical.
Q1: Why is a "Carbon-free" hose mandatory for liquid cooling data centers? A1: Traditional carbon-black reinforced hoses are slightly conductive. In high-power environments, this can lead to electrolytic corrosion and leaks. Our SKW carbon-free hose eliminates the conductive path, providing the industry-standard safety for AI Server Infrastructure.
Q2: How is the insulation performance of the SKW series quantified? A2: As a certified High Insulation Rubber Hose, it features a resistivity of 2x10⊃1;⊃3; ohm·mm and withstands up to 6000V, exceeding the electrical safety requirements for global Liquid Cooling Manifolds and CDUs.

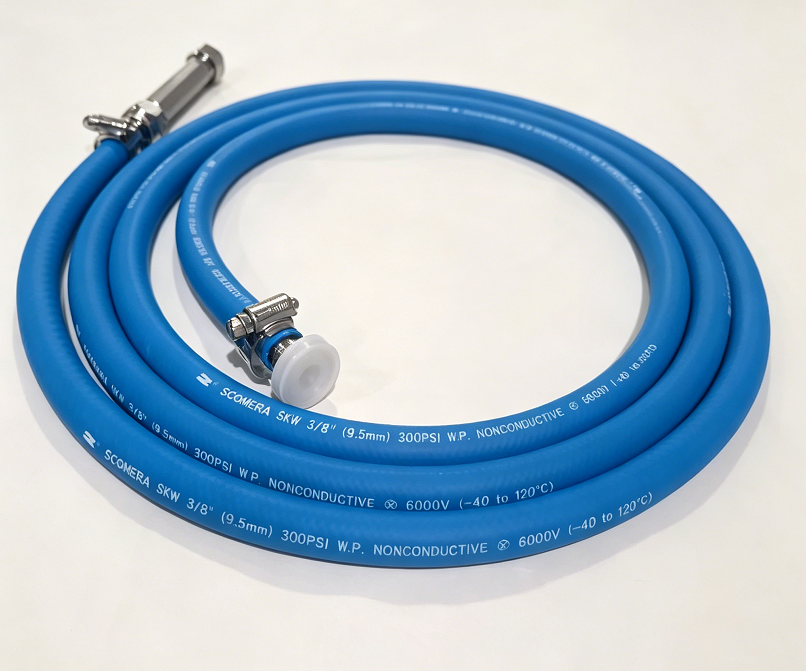

Q3: Does the hose perform well in tight spaces inside a server rack? A3: Yes, specifically designed for high-density rack cabling, the SKW hose offers an excellent bend radius (e.g., 50mm for 1/4") while maintaining a 300PSI pressure rating, ensuring reliable flow without kinking in confined spaces.
