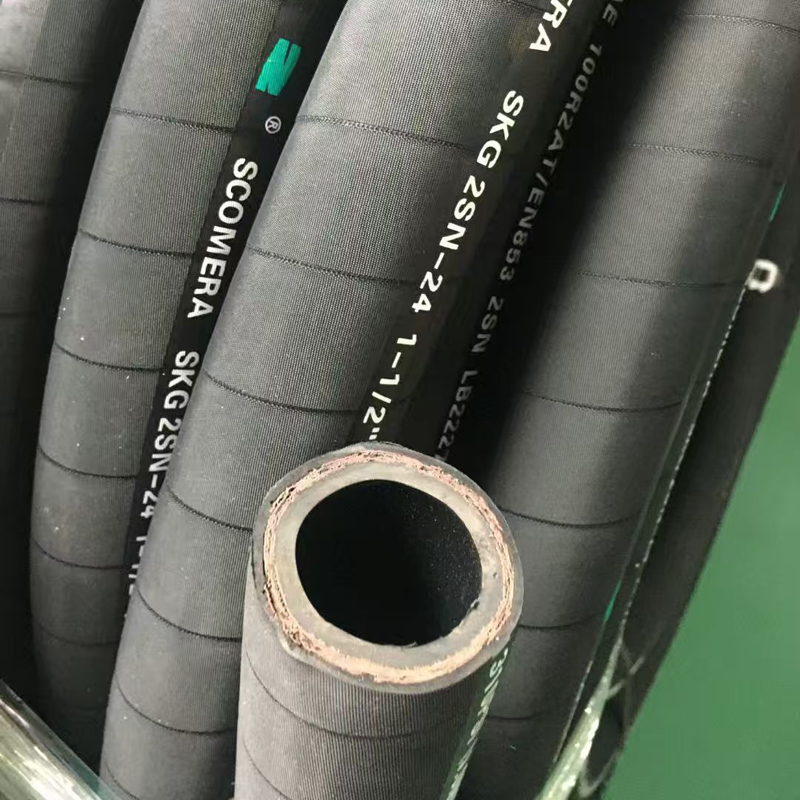

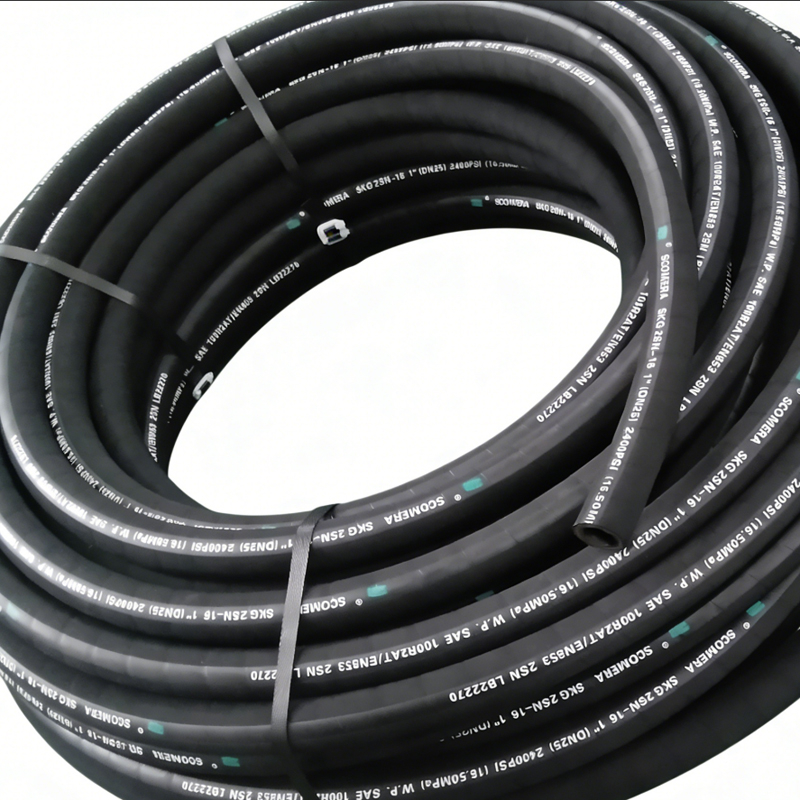

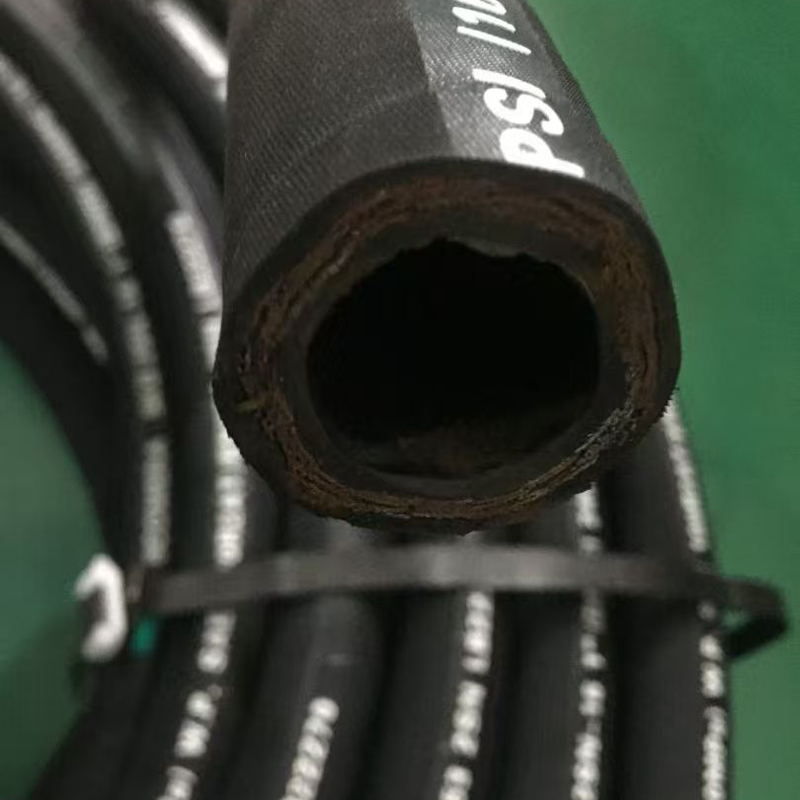

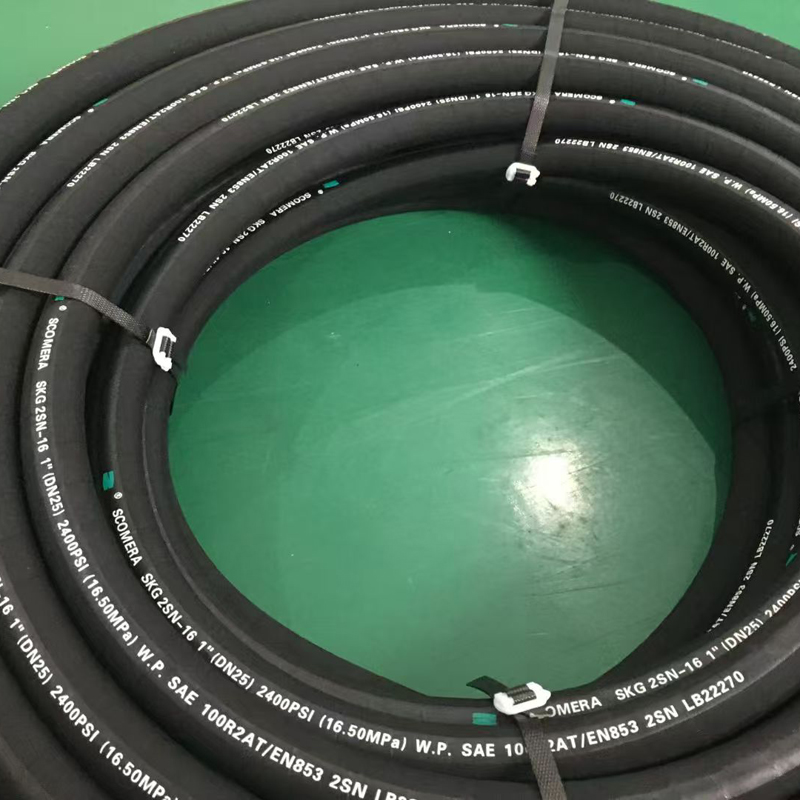

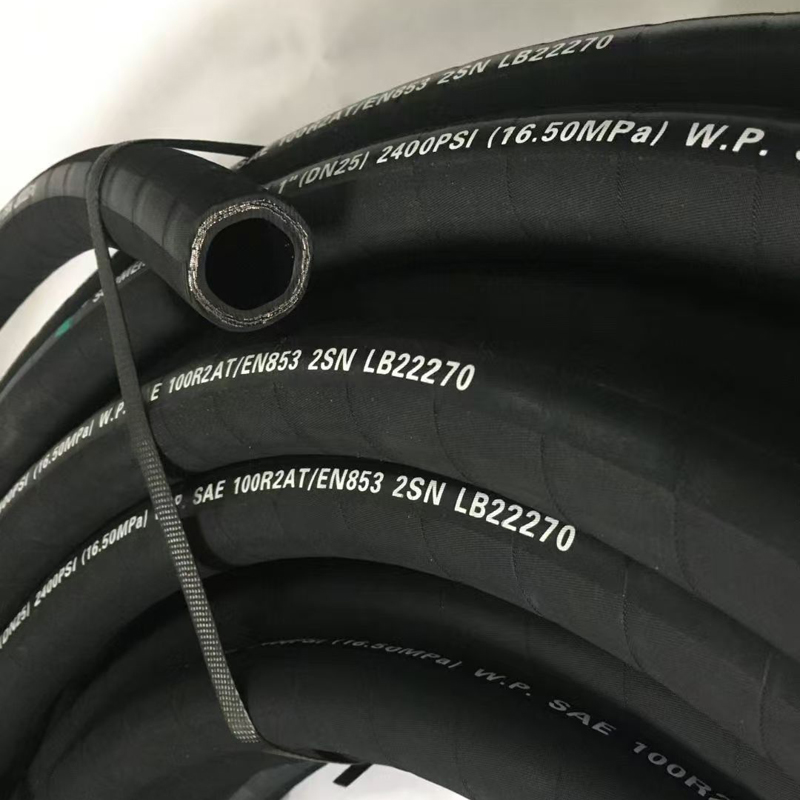

The high-pressure hydraulic hose is a critical component designed for heavy-duty industrial fluid transmission systems, specifically engineered to handle extreme pressure conditions ranging from 3000 PSI to 10,000 PSI. Made from high-quality synthetic rubber inner tube with multiple layers of high-tensile steel wire reinforcement, this hose ensures exceptional durability and leak-proof performance in harsh industrial environments. Unlike standard hoses, our high-pressure hydraulic hose features an abrasion-resistant rubber outer cover that protects against mechanical damage, oil, and chemical corrosion, making it ideal for long-term use in heavy-industry settings. This product is exclusively developed for industrial clients, providing reliable fluid transfer solutions for hydraulic-powered equipment and machinery.
Our high-pressure hydraulic hose is widely used in construction equipment such as excavators, bulldozers, and cranes. It efficiently transmits hydraulic power to drive heavy-duty components like hydraulic cylinders and motors, ensuring smooth operation even under continuous high-pressure loads.
In mining operations, the hose is essential for mining trucks, loaders, and drilling machines. Its pressure-resistant design withstands the extreme working conditions in mines, including heavy vibration and dust, maintaining stable performance for critical mining processes.
For large-scale agricultural equipment such as harvesters and tractors, the high-pressure hydraulic hose delivers reliable power transmission for hydraulic systems, supporting functions like lifting, digging, and material handling in agricultural operations.
In manufacturing facilities, the hose is integrated into production line machinery, including presses, injection molding machines, and conveyor systems. Its chemical-resistant rubber material ensures compatibility with various hydraulic fluids, guaranteeing consistent performance in industrial production.
| Dash | I.D (mm) | I.D (in) | I.D Min (mm) | I.D Max (mm) | Outer Wire Diameter Min (mm) | Outer Wire Diameter Max (mm) | Outer Rubber Thickness Min (mm) | Outer Rubber Thickness Max (mm) | O.D Max (mm) | MAX. Work Pressure W.P (Mpa) | MIN. Burst Pressure B.P (Mpa) | Bending Radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -3 | 5.0 | 3/16" | 4.6 | 5.4 | 10.6 | 11.6 | 0.8 | 1.5 | 14.1 | 41.5 | 166 | 90 | 0.27 |
| -4 | 6.3 | 1/4" | 6.2 | 7.0 | 12.1 | 13.3 | 0.8 | 1.5 | 15.7 | 40.0 | 160 | 100 | 0.34 |
| -5 | 8.0 | 5/16" | 7.7 | 8.5 | 13.7 | 14.9 | 0.8 | 1.5 | 17.3 | 35.0 | 140 | 115 | 0.39 |
| -6 | 10.0 | 3/8" | 9.3 | 10.3 | 16.1 | 17.3 | 0.8 | 1.5 | 19.7 | 33.0 | 132 | 130 | 0.49 |
| -8 | 12.5 | 1/2" | 12.3 | 13.5 | 19.0 | 20.6 | 0.8 | 1.5 | 23.0 | 27.5 | 110 | 180 | 0.59 |
| -10 | 16.0 | 5/8" | 15.5 | 16.7 | 22.2 | 23.8 | 0.8 | 1.5 | 26.2 | 25.0 | 100 | 200 | 0.71 |
| -12 | 19.0 | 3/4" | 18.6 | 19.8 | 26.2 | 27.8 | 0.8 | 1.5 | 30.1 | 21.5 | 86 | 240 | 0.89 |
| -12 | 19.0 | 3/4" | 18.6 | 19.8 | 26.2 | 27.8 | 0.8 | 1.5 | 30.1 | 25.0 | 100 | 240 | 0.89 |
| -16 | 25.0 | 1" | 25.0 | 26.4 | 34.1 | 35.7 | 1.0 | 2.0 | 38.9 | 16.5 | 66 | 300 | 1.37 |
| -20 | 31.5 | 1-1/4" | 31.4 | 33.0 | 43.3 | 45.7 | 1.0 | 2.0 | 49.5 | 12.5 | 50 | 420 | 2.27 |
| -24 | 38.0 | 1-1/2" | 37.7 | 39.3 | 49.6 | 52.0 | 1.3 | 2.5 | 55.9 | 9.0 | 36 | 500 | 2.44 |
| -32 | 51.0 | 2" | 50.4 | 52.0 | 62.3 | 64.7 | 1.3 | 2.5 | 68.6 | 8.0 | 32 | 630 | 3.00 |
| -40 | 64.0 | 2-1/2" | 63.0 | 65.2 | 74.6 | 77.8 | 1.3 | 2.5 | 83.0 | 7.0 | 28 | 760 | 3.47 |
Our high-pressure hydraulic hose has obtained multiple international certifications to meet strict industrial standards:
ISO 1436:2017 - Rubber hoses and hose assemblies for hydraulic systems
SAE J517 - Hydraulic hose specifications (SAE 100 R1, R2, R13 series)
DIN 20022 - German standard for hydraulic hoses
CE certification - Compliance with European Union safety regulations
RoHS compliance - Free from hazardous substances, meeting environmental requirements
We offer comprehensive customization for high-pressure hydraulic hoses based on client-specific requirements:
Custom length cutting (from 1m to 100m) to fit different machinery layouts
Special material options, including HNBR rubber for high-temperature resistance and EPDM rubber for chemical resistance
Customized color outer cover for easy identification in complex hydraulic systems
Special fitting configurations to match unique equipment interfaces
For industrial equipment manufacturers, we provide flexible OEM services:
Private labeling with client's brand logo and specifications
Integration of hoses into complete hydraulic system solutions
Collaborative product development to meet specific machinery performance requirements
We offer competitive bulk wholesale pricing for industrial distributors and large-scale users:
Tiered pricing structure based on order quantity (minimum order quantity: 50 units)
Stable supply capacity with monthly production of 10,000+ units
Fast delivery lead time (7-15 working days for standard products)
Under normal working conditions (proper installation, no overpressure, and regular maintenance), the service life is 2-3 years. The rubber material aging rate will be accelerated in high-temperature or chemical-rich environments, so we recommend regular inspection every 6 months.
Yes, we offer specialized versions with EPDM rubber or CSM rubber inner tubes that are resistant to most corrosive fluids, including acids and alkalis. Please provide the specific fluid type when placing an order, and we will recommend the most suitable product.
Absolutely. We offer detailed installation manuals (including video tutorials) for free, which cover proper cutting, fitting installation, and pressure testing procedures. For large-scale projects, our technical team can also provide on-site installation guidance.
We provide a 12-month warranty for all high-pressure hydraulic hoses. If any quality issues occur within the warranty period (excluding human damage), we will offer free replacement or repair services. Our after-sales team typically responds within 24 working hours.
If you are looking for reliable high-pressure hydraulic hose solutions for your industrial equipment, please contact us to get a free customized quote.
Our sales team will analyze your specific needs (including application scenario, required quantity, and customization requirements) and provide a detailed quote within 48 working hours. We also offer free sample testing for first-time clients to ensure product compatibility with your equipment.
