Push-On, Plug-and-Play: Optimized for push on air hose fittings — the polyester braid angle is engineered for maximum coupling holding force, no clamps, no tools, just push and go, cutting automation assembly time dramatically.
Multi-Media, One Hose for All: As a true multi-purpose hose, it conveys water, air, coolant, lubricants and fuels with up to 50% aromatics, replacing multiple dedicated hoses and simplifying inventory.
CSM Flame Retardant Cover: The CSM chlorosulfonated polyethylene cover is flame retardant, ozone resistant (no cracks after 200 hours at 75±2°C), abrasion and weather resistant — ideal for welding and hot workshop environments.
-40°C to 120°C Wide Range: The heat-modified NBR tube offers excellent air tightness and RMA-A oil resistance, with optional 150°C high-temp and non-conductive air hose versions available.

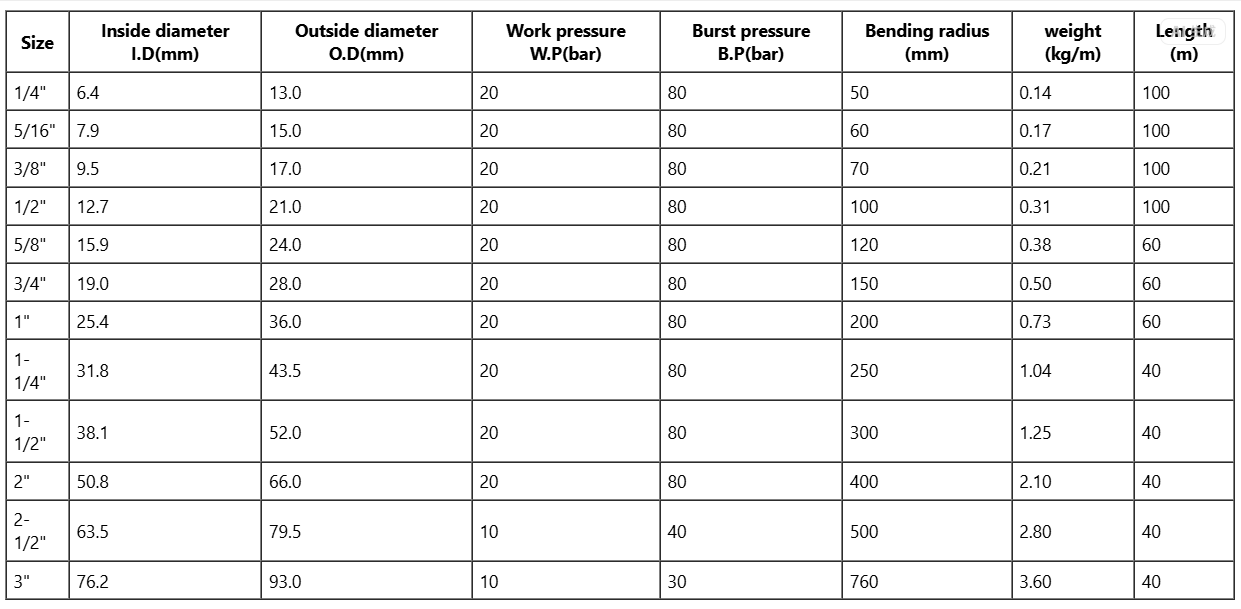

Full Sizes & Assembly Customization: 1/4" to 3" full range (40~100m lengths), five colors (black/red/blue/green/yellow), with custom hose assemblies, by-the-meter cutting and OEM printing — factory direct.
Drag Chain / Energy Chain Systems: As drag chain hose, it flexes with the chain in automation equipment without cracking, carrying pneumatic control signals and coolants.
Robot Arms: Suited to robotic air hose applications — flexible and lightweight, it follows six-axis arm motion for air supply and works with robot dress packs.
Automotive Assembly Lines: As automotive assembly air hose, it connects air tools, torque guns and fixtures with oil and abrasion resistance.
Machine Tool Cooling: Conveys coolant and cutting fluid as machine tool coolant hose, stable in hot, oil-mist environments.
Shop Air & Maintenance: A standard pneumatic air hose for compressed air distribution, equipment maintenance and general industrial transfer — the general purpose air hose that does it all.
Q1: Can this multi-purpose hose be used directly with push-on fittings? A: Yes. This hose is designed for push on air hose fittings — the polyester braid angle is optimized for maximum coupling holding force, no clamps or special tools needed, just push in for a sealed connection. We can also pre-assemble fittings into hose assemblies for plug-and-play delivery.
Q2: What media can it convey, and what are the temperature and pressure ratings? A: As a multi-purpose hose, it conveys water, air, coolant, lubricants and fuels/diesel/gasoline with up to 50% aromatics; temperature range is -40°C to 120°C (150°C optional) with 300PSI (20bar) working pressure and 80bar burst. Non-conductive air hose and anti-static versions are available on request.

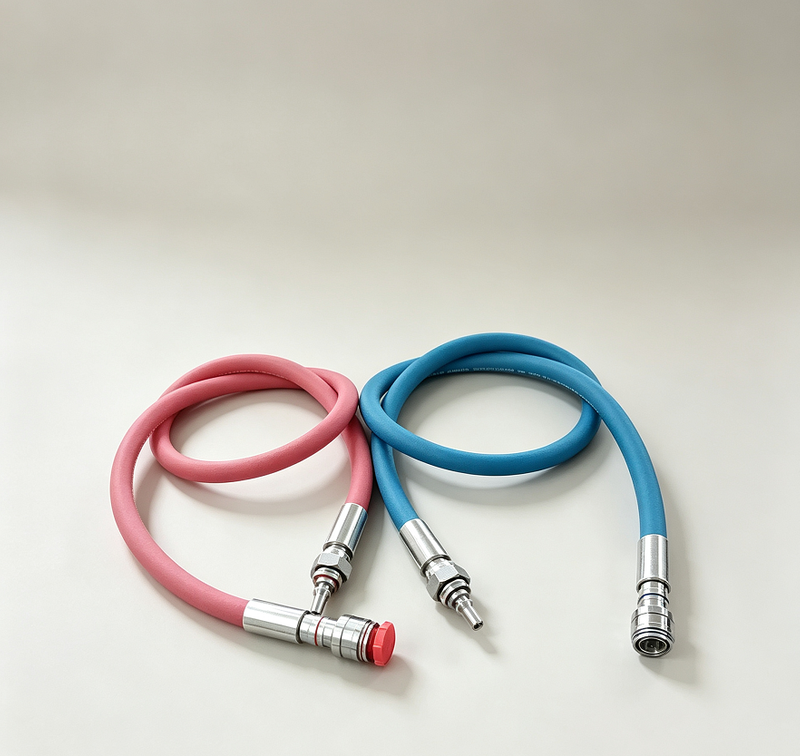

Q3: Can it be used in drag chains or on robots? Can you customize length and fittings? A: Yes. Designed for automation, it suits both drag chain hose and robotic air hose applications. We offer by-the-meter custom length, five colors, fitting options (straight/elbow/quick connect) and OEM printing — factory direct for bulk engineering orders.
