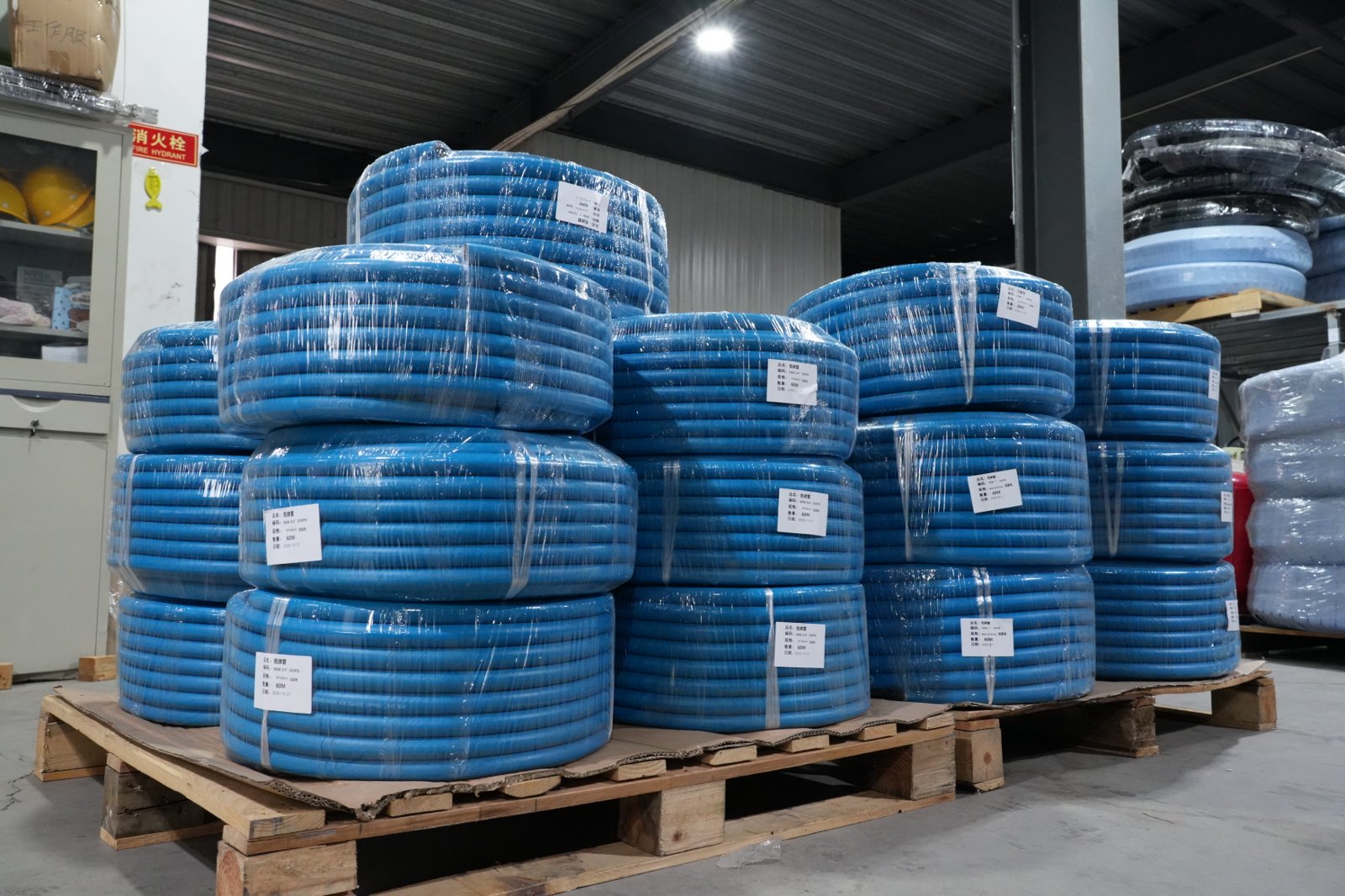

This insulated, cost-effective general-purpose hose is a reliable fluid transfer solution for industrial and data center liquid cooling applications, engineered for air, water, and coolant delivery in rigorous environments.
Our high-performance, non-conductive hose solutions are engineered to meet the demanding requirements of heavy-duty industrial environments. Designed for superior reliability, our products serve as the backbone for critical fluid and air transfer systems:
Industrial Manufacturing & Pneumatic SystemsAs a professional-grade pneumatic air hose, this product ensures optimized airflow for air compressors and automated production lines. It minimizes pressure drops, facilitating uninterrupted operations in high-cycle manufacturing settings.
Construction & Open-Pit MiningBuilt to endure the harshest field conditions, our general purpose rubber hose features a specialized wear-resistant cover that excels against heavy drag, constant abrasion, and extreme outdoor weather, making it the preferred choice for large-scale infrastructure projects.
Large-Scale Agricultural OperationsEngineered with high UV and ozone resistance, this hose provides long-term service in commercial agricultural facilities, supporting a variety of needs from complex irrigation systems to heavy-duty pneumatic equipment operation.
Industrial Cooling & Utility SystemsWith a 6000V non-conductive rating, this hose is essential for water-cooled cable systems and sensitive electrical infrastructure. It functions as a highly reliable industrial water hose, ensuring safe, consistent performance near energized equipment without the risk of electrical conductivity.
| Size | Inside diameter I.D(mm) | Outside diameter O.D (mm) | Work pressure W.P(bar) | Burst pressure B.P (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) |
|---|---|---|---|---|---|---|---|
| 1/4" | 6.4 | 13.0 | 20 | 80 | 50 | 0.14 | 100 |
| 5/16" | 7.9 | 15.0 | 20 | 80 | 60 | 0.17 | 100 |
| 3/8" | 9.5 | 17.0 | 20 | 80 | 70 | 0.20 | 100 |
| 12mm | 12.0 | 19.5 | 20 | 80 | 100 | 0.27 | 100 |
| 1/2" | 12.7 | 21.0 | 20 | 80 | 100 | 0.28 | 100 |
| 15mm | 15.0 | 23.0 | 20 | 80 | 120 | 0.32 | 60 |
| 5/8" | 15.9 | 24.0 | 20 | 80 | 120 | 0.32 | 60 |
| 3/4" | 19.0 | 28.0 | 20 | 80 | 150 | 0.34 | 60 |
| 1" | 25.4 | 36.0 | 20 | 80 | 200 | 0.68 | 60 |
| 1-1/4" | 31.8 | 43.5 | 20 | 80 | 250 | 0.90 | 40 |
| 1-1/2" | 38.1 | 52.0 | 20 | 80 | 300 | 1.20 | 40 |
| 1-5/8" | 41.0 | 54.0 | 20 | 80 | 320 | 1.30 | 40 |
| 1-3/4" | 45.0 | 58.0 | 20 | 80 | 350 | 1.50 | 40 |
| 2" | 50.8 | 66.0 | 20 | 80 | 400 | 2.10 | 40 |
| 2-1/2" | 63.5 | 80.0 | 10 | 40 | 500 | 2.80 | 40 |
| 3" | 76.2 | 93.0 | 10 | 30 | 760 | 3.60 | 40 |
Our high pressure general purpose industrial hose adheres to strict international industrial standards, including ISO 1436 for industrial hose performance, IEC 60243 for 6000V electrical insulation validation, and regional safety norms for industrial fluid transfer equipment. All materials comply with RoHS requirements for industrial use, with rigorous batch testing for wear resistance, ozone aging, and pressure stability to ensure consistent compliance across global industrial markets.
Perfect for server rack liquid cooling hoses, data center cooling pipelines, and supercomputing center liquid cooling loops, compatible with glycol coolants.
Widely used in agricultural irrigation and construction water supply, with weather-resistant EPDM suitable for outdoor and harsh working conditions.
Yes. As a dedicated EPDM data center cooling hose, it fits server rack liquid cooling connections and CDU pipelines, is coolant-compatible, and meets electrical safety requirements with its insulated design.
Yes. The carbon-free EPDM inner tube offers resistivity up to 2×10¹³ Ω·m and withstands 6000V DC, making it safe for high-voltage cooling applications like water-cooled cable systems.
Yes. Operating at -40℃~120℃, with ozone-resistant, anti-aging cover, it provides stable fluid transfer for long-term liquid cooling loops in computing centers.
Contact our industrial sales team today to receive a free, no-obligation quote for your General Purpose Hose needs. Whether you require custom OEM solutions, bulk wholesale volumes, or technical specification guidance, our dedicated engineering and sales support team will respond within 24 hours with a tailored solution to match your operational requirements.
