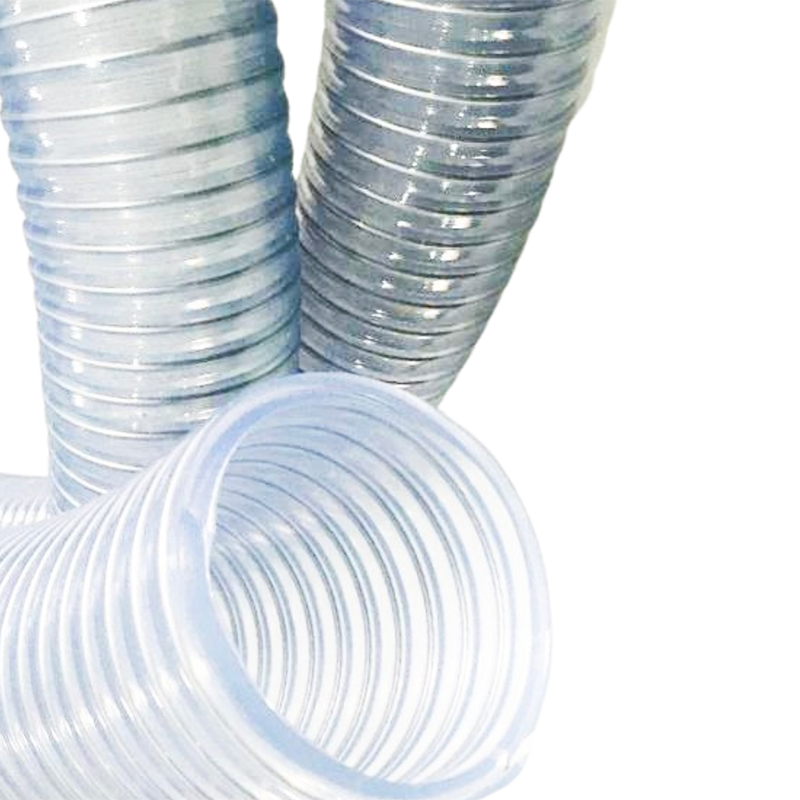

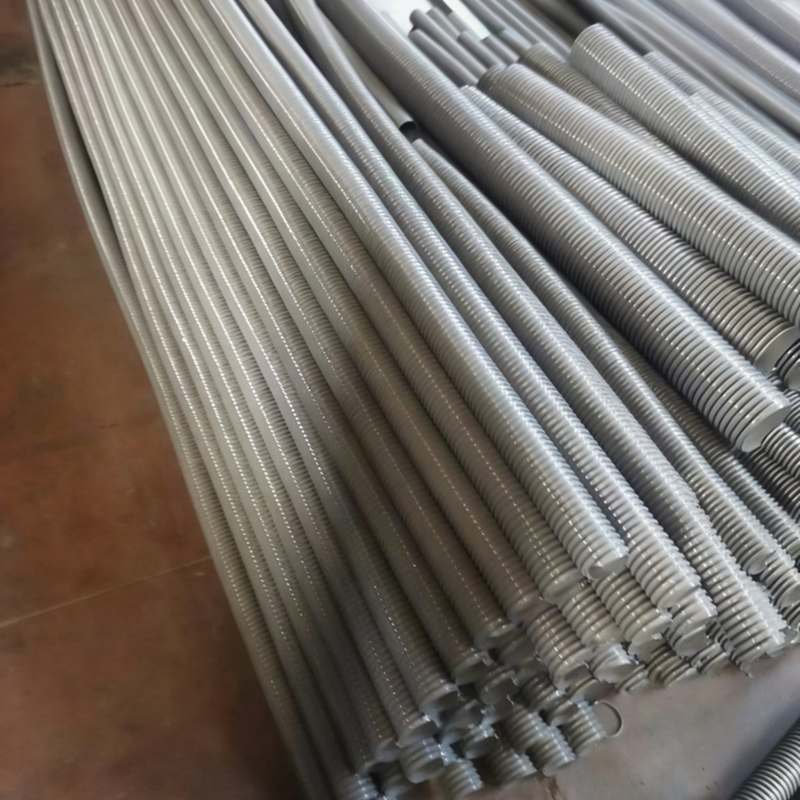

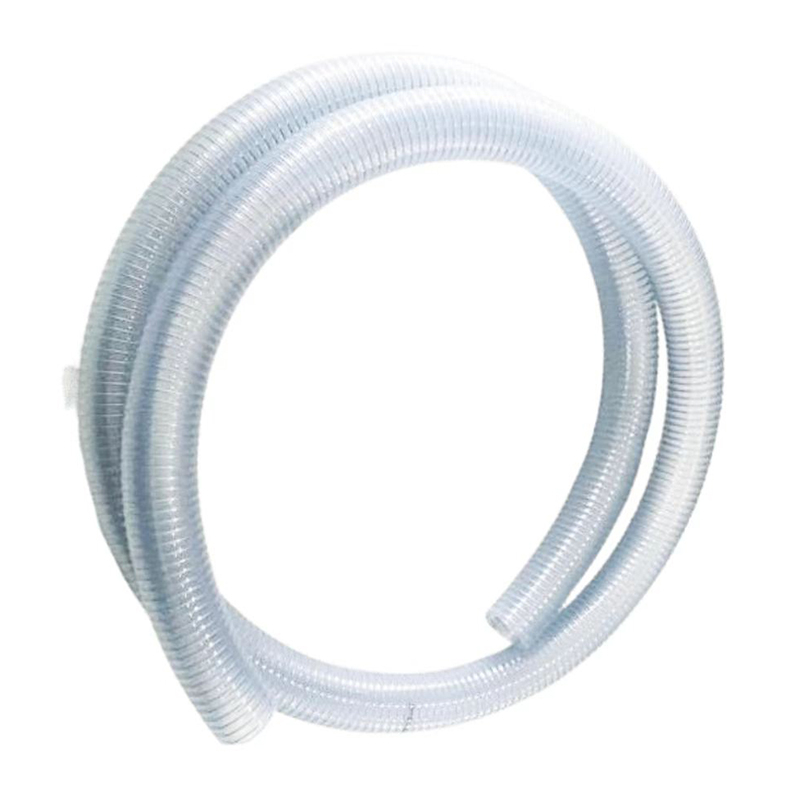

Our Food Grade Steel Wire Reinforced Hose is a premium sanitary fluid transfer solution, engineered exclusively for food, beverage, and ultra-pure liquid processing operations. Manufactured from top-grade ether-based polyurethane (E-PUR) material, this hose is completely free of organic plasticizers, phthalates, and harmful additives, delivering zero odor or taste leaching, ensuring the purity of transferred materials.
It features a solid spiral stainless steel wire reinforcement layer embedded in the tube wall, with a transparent, smooth inner wall, exceptional pressure resistance, and full compliance with global food safety standards. With a wide operating temperature range of -40℃ to 120℃, support for high-temperature autoclaving, and excellent chemical corrosion resistance, this E-PUR Food Grade Delivery Hose is the preferred choice for food and beverage manufacturers, distilleries, and sanitary processing facilities worldwide.
As a specialized Beverage Processing Transfer Hose, it is optimized for the transfer of spirits, baijiu, red wine, beer, rice wine, and other alcoholic beverages, with excellent alcohol corrosion resistance and a transparent tube body for real-time visual monitoring of transfer status, ideal for distilleries, wineries, and beverage bottling facilities.
This Food Safe Fluid Transfer Hose is perfect for juice, dairy, edible oil, condiment, and drinking water transfer in food processing plants, with a smooth non-stick inner wall that prevents residue buildup, meets strict food hygiene standards, and supports continuous production operations.
It is engineered for the precise transfer of ultra-pure liquids, pharmaceutical grade fluids, and disinfectant solutions, with zero secondary pollution risk, excellent chemical resistance, and support for frequent high-temperature disinfection, ideal for pharmaceutical manufacturing plants and laboratory facilities.
With an operating temperature range of -40℃ to 120℃, this Transparent Food Grade Hose maintains stable performance in high-temperature sterilization and cold-chain transfer operations, suitable for food processing facilities that require strict sanitary control and frequent cleaning.
Inner dia (mm) | Outer dia (mm) | Weight (kg/roll) | Working pressure (bar) | Bursting pressure (bar) | Negative pressure (m-H₂O) | Bending radius (mm) | Length per roll (m) | Volume (m³) |
20 | 26 | 14 | 9 | 21 | 10 | 80 | 50 | 0.070 |
25 | 32 | 14.77 | 9 | 21 | 10 | 100 | 50 | 0.092 |
32 | 40 | 15 | 8 | 18 | 10 | 140 | 50 | 0.120 |
38 | 46 | 20.4 | 7 | 17 | 10 | 180 | 50 | 0.138 |
45 | 53 | 25.3 | 6 | 17 | 10 | 230 | 50 | 0.151 |
50 | 58 | 26.4 | 6 | 17 | 10 | 260 | 50 | 0.189 |
64 | 73 | 19.10 | 5 | 14 | 10 | 270 | 20 | 0.206 |
75 | 85 | 28.13 | 5 | 12 | 10 | 300 | 20 | 0.239 |
100 | 111 | 52.70 | 5 | 10 | 10 | 330 | 20 | 0.311 |
Our Food Grade Steel Wire Reinforced Hose complies with global food safety contact standards, with a formulation completely free of organic plasticizers, phthalates, latex additives, and harmful substances. It meets the strict sanitary requirements for food and beverage processing, supports autoclaving and high-temperature disinfection, and is fully certified for direct contact with edible fluids, alcoholic beverages, and pharmaceutical grade liquids. All production processes adhere to international sanitary product manufacturing norms, ensuring consistent compliance for food processing enterprises worldwide.
We offer comprehensive customization tailored to food and beverage manufacturers, distilleries, dairy processing plants, and food equipment OEMs. Available customizations include custom length cutting, custom roll size configurations, branded OEM packaging, and custom color options to match your production line branding.
We provide flexible minimum order quantities (MOQs) for bulk wholesale orders, competitive volume-based pricing, and dedicated sanitary engineering support to match your processing system requirements, with full OEM solutions for food equipment manufacturers and processing line integrators.
Yes. This hose is manufactured from food-grade ether-based polyurethane (E-PUR), completely free of organic plasticizers, phthalates, and harmful additives, with zero odor or taste leaching, making it fully compliant for direct contact with foods, beverages, spirits, and dairy products.
This Beverage Processing Transfer Hose has an operating temperature range of -40℃ to 120℃, and fully supports high-temperature autoclaving and disinfection, making it ideal for food and beverage processing facilities that require frequent sanitary cleaning and sterilization.
