True Electrical Insulation: Carbon-free compound in both inner and outer rubber layers (no carbon black) delivers dielectric breakdown voltage above 6kV, making it a genuine high voltage insulation hose that eliminates leakage and short-circuit risk in energized cooling circuits.
Built for Data Center Liquid Cooling: As a non-conductive EPDM liquid cooling hose, it fits data center liquid cooling systems, CDUs, server racks and immersion cooling, resisting repeated bending and twisting for long-term stability.
Quick Coupling Compatible & Leak-Free: Standard-fit with UQD quick couplings for drip-free connection and disconnection, keeping the liquid cooling loop sealed with minimal maintenance downtime.
Ozone & Ageing Resistant: Ozone-resistant cover passes 200PPM / 12h ozone ageing without cracking; -40°C to 100°C working range with excellent abrasion resistance.
Wear-Resistant Cloth Impression Cover: Blue cloth-impression outer cover delivers superior abrasion and anti-ageing performance with a professional look; available in 3/4" to 3" sizes with customizable length.
Data Center Liquid Cooling: Installed in CDU (coolant distribution unit), server racks and immersion cooling systems — the carbon free insulated hose protects AI servers and high-density computing cooling loops.
Medium Frequency & Electric Arc Furnace Cooling: The non-conductive cooling water hose suits high-frequency electromagnetic environments of medium frequency and electric arc furnaces, preventing induction leakage.
Electromechanical Equipment & Cable Circuit Cooling: Insulated EPDM cooling water hose for energized electromechanical equipment and cable circuits, resistant to oil mist and ageing.
Semiconductor & Precision Industrial Cooling: Paired with UQD quick couplings for semiconductor equipment and precision industrial cooling systems requiring high insulation and cleanliness.

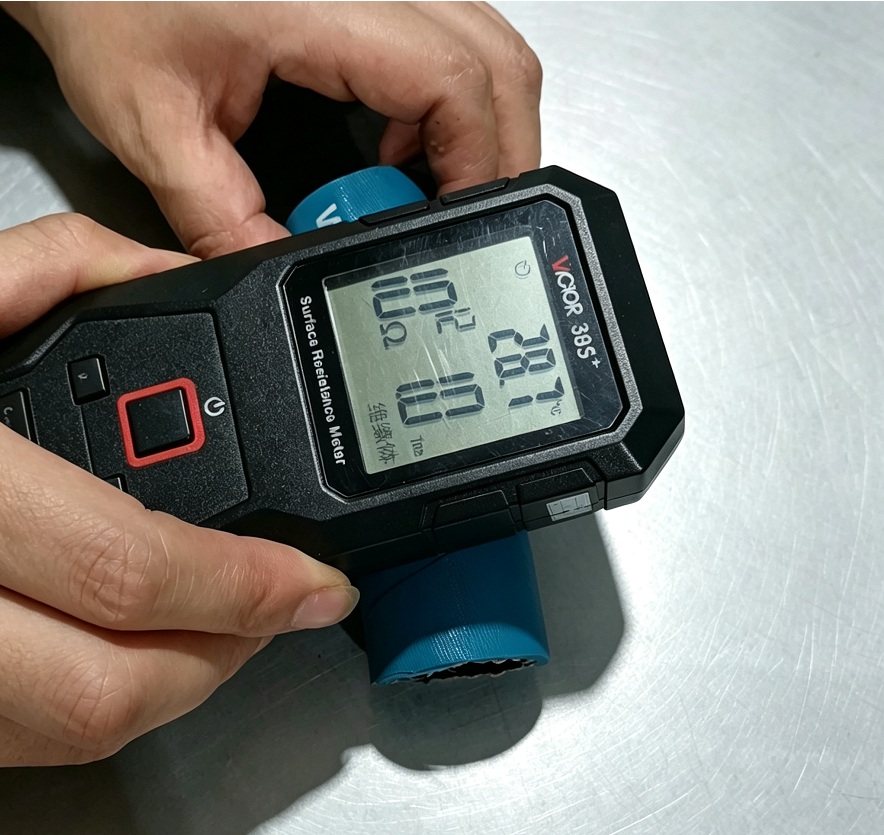

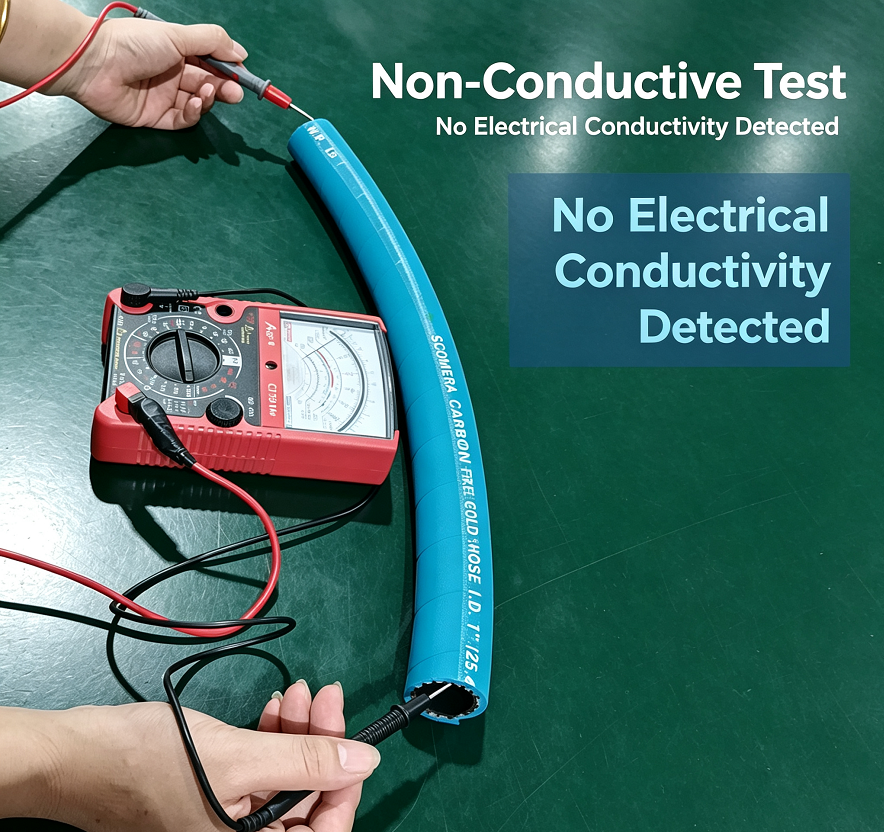

Is this liquid cooling hose truly non-conductive? Yes. This non-conductive carbon free EPDM liquid cooling hose uses carbon-free compound in both layers with dielectric breakdown voltage above 6kV. As a high voltage insulation hose, it is safe for data center liquid cooling, medium frequency furnace and electric arc furnace cooling circuits, preventing leakage and short circuits.
Can it work with quick couplings? Any leakage? Yes. It is standard-fit with UQD quick couplings; the sealed coupling design ensures drip-free connection and disconnection, delivering a leak-free liquid cooling loop suitable for hot-plug data center applications.

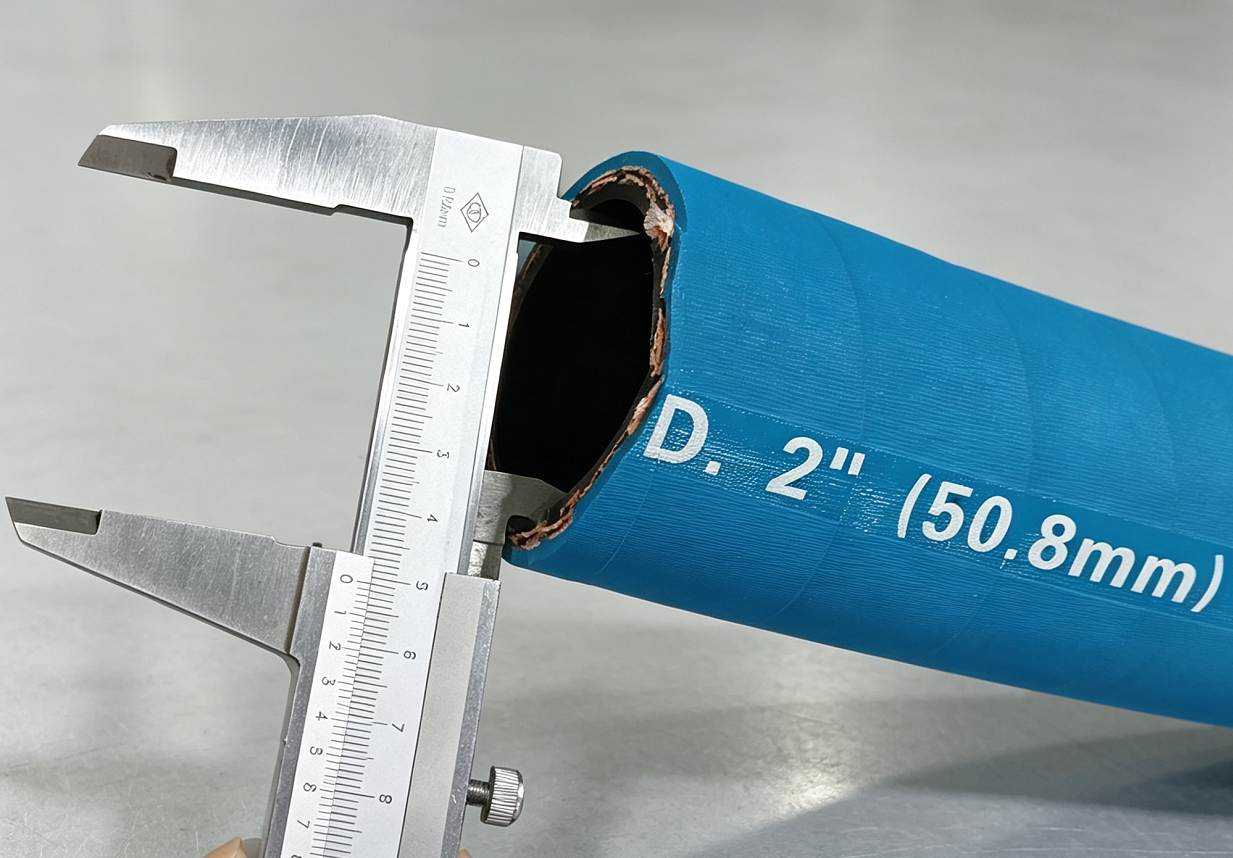

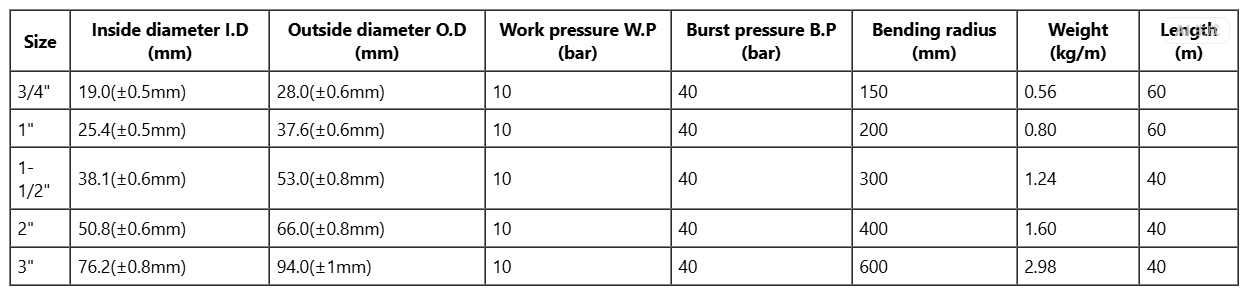

Available sizes, temperature and medium? Five sizes from 3/4" to 3" (I.D. 19-76.2mm), working temperature -40°C to 100°C (operating 0-65°C), medium: water. Inner tube is EPDM — not for prolonged oil transfer.
