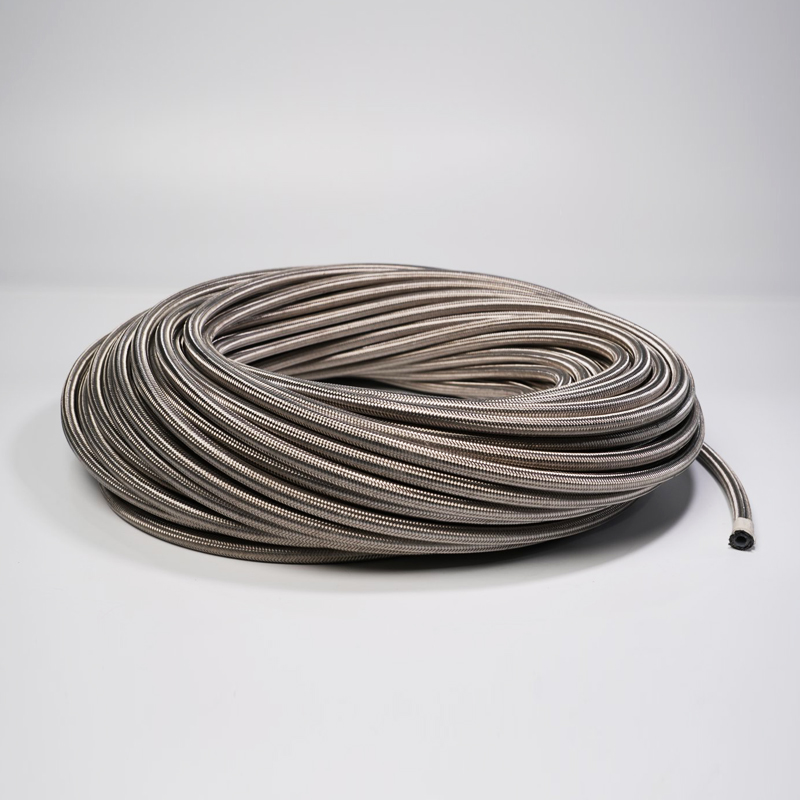

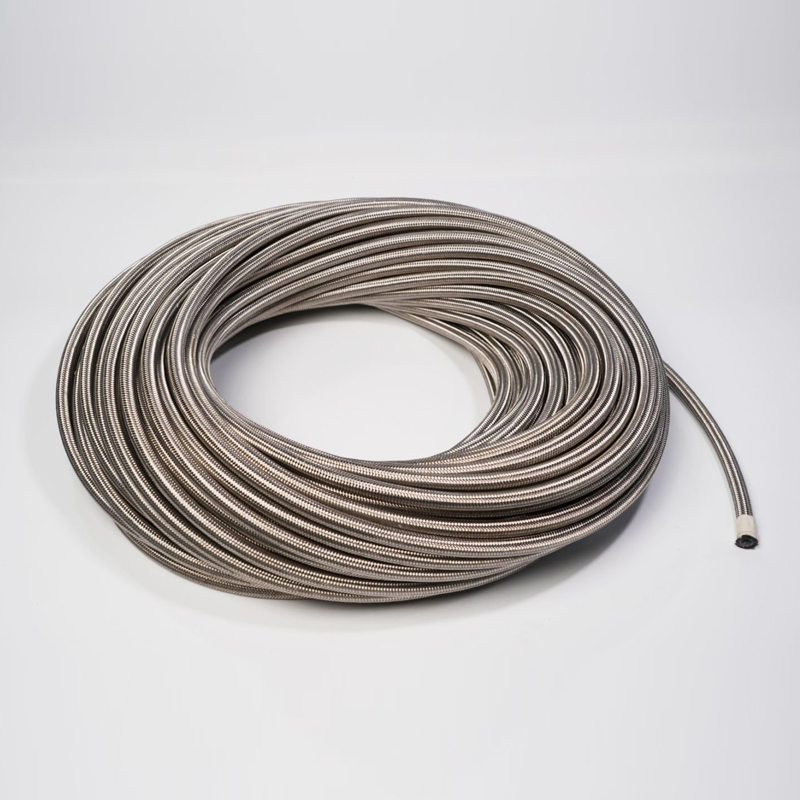

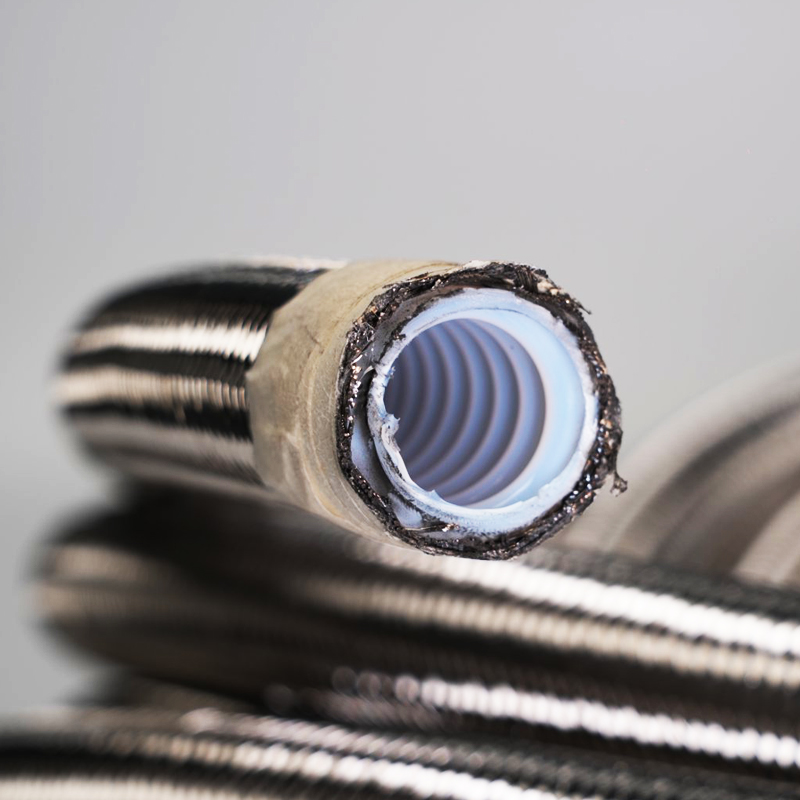

Made from polytetrafluoroethylene (PTFE), this hose offers exceptional chemical resistance, outperforming traditional options like rubber hose and silicone rubber hose in harsh conditions. Its non-stick inner surface prevents fluid buildup, ensuring consistent flow rates for critical industrial processes. Whether handling aggressive chemicals, high-temperature fluids, or food-grade materials, the PTFE Hose delivers long-term durability, reducing maintenance costs for manufacturing facilities, processing plants, and engineering firms.
The chemical resistant PTFE hose safely transfers acids, solvents, and corrosive agents, replacing less durable EPDM rubber hose and NBR rubber hose in chemical plants.
Its inert properties prevent contamination, making it suitable for pharmaceutical intermediate transfer.
Food grade PTFE hose complies with strict hygiene standards, ideal for transferring oils, syrups, and dairy products without altering taste or quality.
Outperforms natural rubber hose by avoiding material leaching and easy cleaning.
High temperature PTFE hose handles engine coolants and hydraulic fluids up to 260°C, surpassing the thermal limits of buna n rubber hose and butyl rubber hose.
Used in fuel line systems for its resistance to gasoline and aviation fuels.
Specification | Parameter |
Inner Diameter | 6mm - 50mm |
Outer Diameter | 12mm - 62mm |
Working Temperature | -200°C to 260°C |
Maximum Working Pressure | 10 bar - 30 bar (depending on size) |
Material | Virgin PTFE (inner tube); Stainless steel 304/316 (braid) |
Color | Natural white (inner); Silver (braid) |
Length | Standard 1m - 20m; Custom lengths available |
Fluid Compatibility | Acids, alkalis, solvents, oils, food fluids |
size | Inner damcter | Outer diameter | Mini wall | Bending | Working | Burst | Weight | ||
mini | max | mini | max | ||||||
1/4” | 6.10 | 6.70 | 9.30 | 9.90 | 0.75 | 18 | 172 | 517 | 0.140 |
5/16" | 7.9 | 8.50 | 12.3 | 12.90 | 0.60 | 20 | 138 | 414 | 0.160 |
3/8" | 9.50 | 10.20 | 12.8 | 14.50 | 0.65 | 20 | 138 | 414 | 0.152 |
1/2" | 12.45 | 13.08 | 17.8 | 19.20 | 0.80 | 25 | 103 | 310 | 0.253 |
5/8" | 15.70 | 16.38 | 21.8 | 24.00 | 0.80 | 51 | 83 | 248 | 0.304 |
3/4” | 19.00 | 19.65 | 24.0 | 27.00 | 1.00 | 64 | 69 | 207 | 0.374 |
7/8° | 21.84 | 22.86 | 27.9 | 29.46 | 1.00 | 76 | 57 | 172 | 0.460 |
1" | 25.50 | 26.16 | 32.2 | 36.10 | 1.00 | 89 | 46 | 138 | 0.543 |
1-1/4” | 31.95 | 32.46 | 40.2 | 41.30 | 1.00 | 125 | 34 | 103 | 0.635 |
1-1/2” | 38.00 | 38.90 | 47.8 | 49.00 | 1.00 | 152 | 30 | 90 | 0.840 |
2" | 50.90 | 51.90 | 60.5 | 62.30 | 1.10 | 200 | 23 | 69 | 1.000 |
3" | 71.20 | 78.80 | 89.5 | 98.70 | 1.20 | 310 | 20 | 80 | 1.500 |
4" | 98.00 | 105.00 | 120.7 | 131.25 | 1.30 | 380 | 15 | 60 | 2.000 |
The PTFE Hose meets global industrial standards to satisfy business clients’ regulatory requirements:
FDA 21 CFR Part 177.1550 (for food contact applications)
ISO 1043-1 (PTFE material standard)
SGS certification for chemical resistance
RoHS compliance for environmental safety
Pressure testing per EN 13765 standards
Tailor PTFE hose length, inner diameter, and braid material (stainless steel 304/316 or polyester) to match specific equipment requirements.
Add protective sleeves for abrasive environments, replacing vulnerable gum rubber hose setups.
Provide OEM branding for industrial equipment manufacturers integrating PTFE hose into their machines.
Bulk wholesale pricing for engineering firms and maintenance contractors, with flexible delivery schedules to support production lines.
Minimum order quantities (MOQs) start at 50 units for standard sizes, with priority lead times for repeat clients.
Unlike rubber hose variants (e.g., CSM rubber hose, SBR rubber hose), PTFE Hose offers superior chemical resistance and higher temperature tolerance. It also has a longer service life (5-8 years vs. 2-3 years for rubber), reducing replacement costs for industrial users.
Yes, our high pressure PTFE hose models (up to 30 bar) are suitable for hydraulic systems and pressure washing equipment, with braided reinforcement preventing expansion under pressure.
Minimal maintenance is needed—simply flush with clean water after use with corrosive fluids. Unlike IIR rubber hose, PTFE does not degrade from UV exposure or ozone, eliminating the need for protective coatings.
For industrial buyers, engineering firms, or manufacturing facilities seeking reliable PTFE Hose solutions, contact our team today for a customized quote. Provide details on required length, diameter, and application (e.g., chemical transfer, food processing), and we’ll deliver a competitive pricing proposal within 24 hours. Bulk orders qualify for additional discounts—start optimizing your fluid transfer systems with our high-performance PTFE Hose now.
