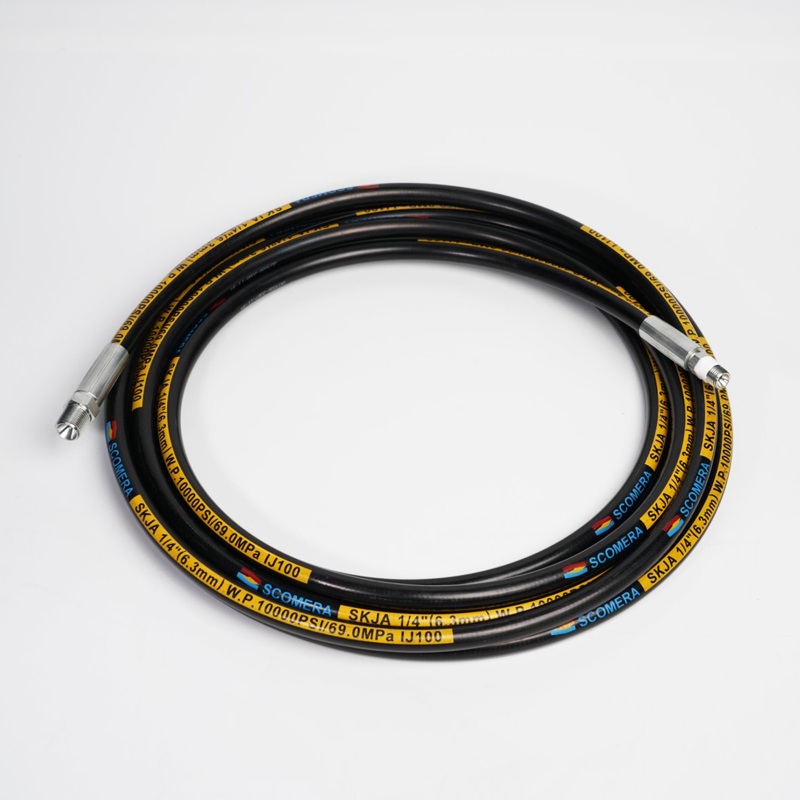

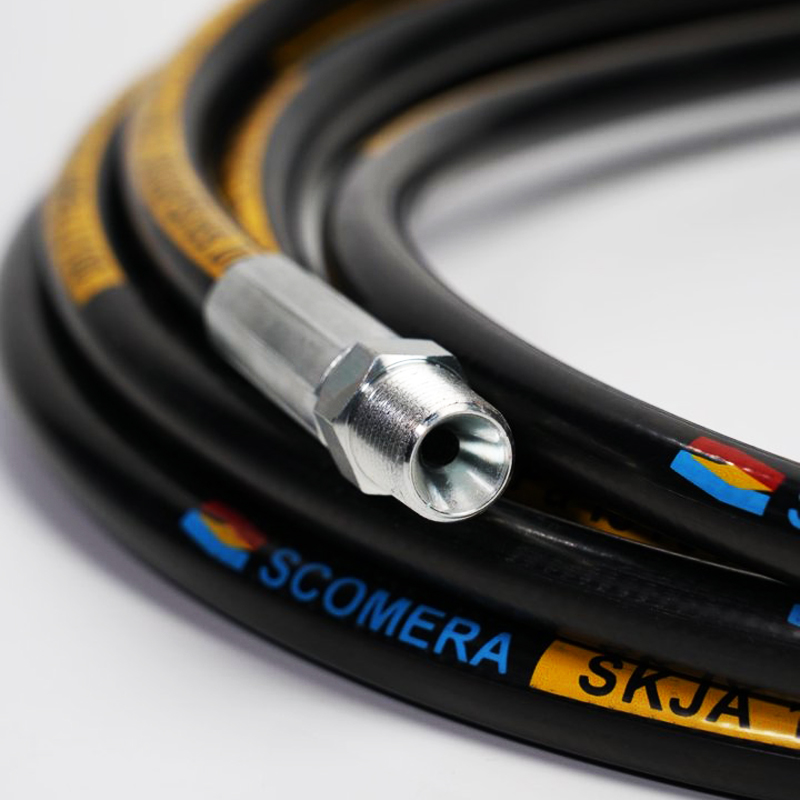

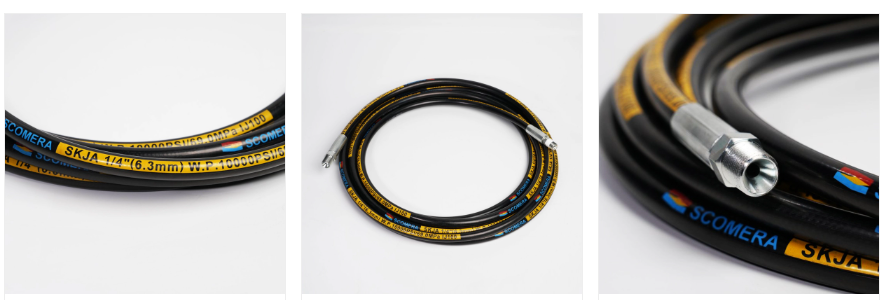

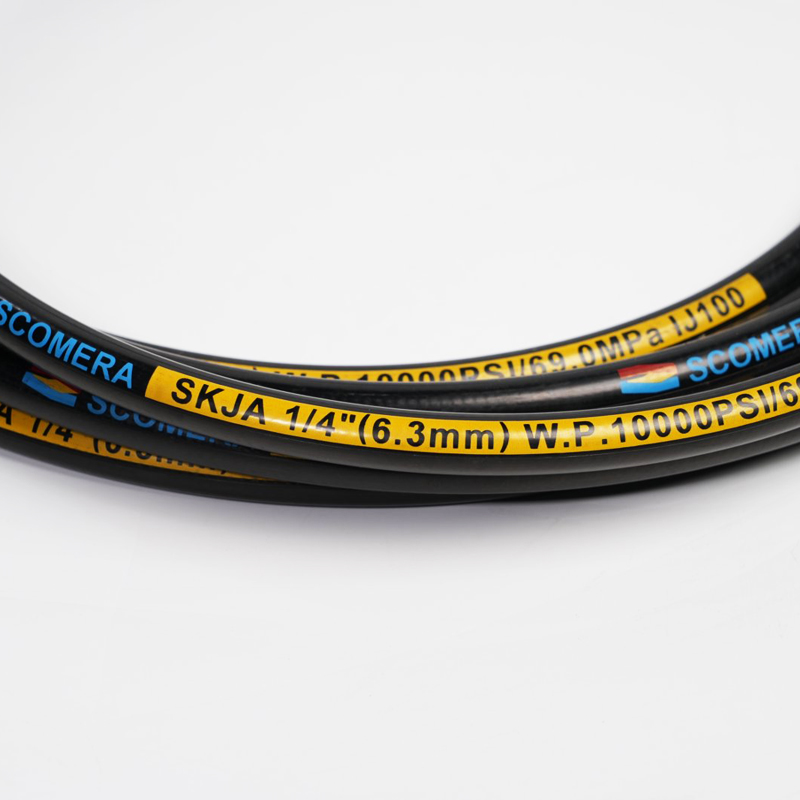

Our MHI IJ100 Hydraulic Jack Hose is an industry-compliant, high-pressure hydraulic solution, exclusively engineered for hydraulic jack systems and static pressure industrial lifting operations. Built to strict MHI IJ100 standard specifications, this hose delivers a maximum static working pressure of 10000psi (69.0MPa), meeting the most stringent safety requirements for industrial lifting applications.
It features an oil-resistant nitrile rubber (NBR) inner tube, 2-ply high-tensile steel braided reinforcement layer, and durable NBR/PVC composite outer cover, with an optional SF ultra-wear-resistant cover upgrade. With a wide operating temperature range of -40℃ to 100℃ and exceptional sealing performance, this Oil Resistant Hydraulic Hose is the preferred Static Pressure Hydraulic Hose for heavy equipment maintenance, construction, and industrial lifting operations worldwide.
As a specialized Hydraulic Jack Hose, it is purpose-built for various industrial hydraulic jack configurations, supporting safe transfer of hydraulic media under static pressure, ideal for heavy machinery lifting, bridge construction, and structural engineering operations.
This 10000psi Static Pressure Hydraulic Hose is optimized for heavy equipment maintenance facilities, shipyards, and mining operations, delivering stable performance for hydraulic jack systems used in the repair and maintenance of construction machinery, industrial equipment, and commercial vehicles.
With the optional SF wear-resistant outer cover, this SF Wear Resistant Rubber Hose is twice as durable as standard hydraulic hoses, making it perfect for workshop assembly lines, equipment fabrication facilities, and other working conditions with frequent pipeline friction and abrasion.
With an operating temperature range of -40℃ to 100℃, this 2-Ply Steel Braided Hydraulic Hose maintains stable performance in extreme cold and high-temperature environments, suitable for outdoor construction sites, cold-region mining operations, and high-temperature industrial workshops.
Inside Diameter (inch) | Inside Diameter (mm) | Outside Diameter (inch) | Outside Diameter (mm) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Bending Radius (inch) | Bending Radius (mm) |
1/4" | 6.3 | 0.58 | 15.0 | 10000 | 69.0 | 40000 | 276.0 | 4.3 | 110.0 |
3/8" | 9.5 | 0.74 | 18.8 | 10000 | 69.0 | 40000 | 275.8 | 5.0 | 127.0 |
Our MHI IJ100 Hydraulic Jack Hose is manufactured in strict compliance with MHI IJ100 industry standards, the leading global specification for hydraulic jack hoses. It meets all safety requirements for 10000psi static pressure operations, with a steel braided reinforcement design that adheres to international hydraulic hose pressure-bearing norms. All production processes follow strict quality management standards, ensuring consistent compliance and performance for industrial procurement clients and hydraulic system integrators.
We offer end-to-end customization for heavy equipment manufacturers, industrial maintenance service providers, and hydraulic system integrators. Available customizations include optional SF ultra-wear-resistant outer cover, custom length fabrication, branded OEM packaging, and custom color options to match your equipment branding.
We provide flexible minimum order quantities (MOQs) for bulk wholesale orders, competitive volume-based pricing, and dedicated hydraulic engineering support to match your specific lifting system requirements, with full OEM solutions for equipment manufacturers and system integrators.
Yes. This hose is fully compliant with MHI IJ100 industry specifications, engineered exclusively for hydraulic jack systems with a maximum static working pressure of 10000psi (69.0MPa), ensuring safe and reliable performance in industrial static pressure lifting operations.
The SF wear-resistant outer cover is twice as abrasion-resistant as standard hydraulic hose covers, making this 2-Ply Steel Braided Hydraulic Hose ideal for working conditions with frequent pipeline friction, significantly extending service life and reducing replacement costs for industrial operations.
For heavy equipment manufacturers, industrial maintenance service providers, construction enterprises, and hydraulic system integrators seeking a compliant, high-performance MHI IJ100 Hydraulic Jack Hose, we offer free, no-obligation custom quotes, complimentary sample testing, and dedicated technical consultation. Our team will work with you to create a tailored solution that meets your specific lifting system needs, with competitive bulk pricing for large-volume orders. Contact our sales and hydraulic engineering team today to get your free quote.
