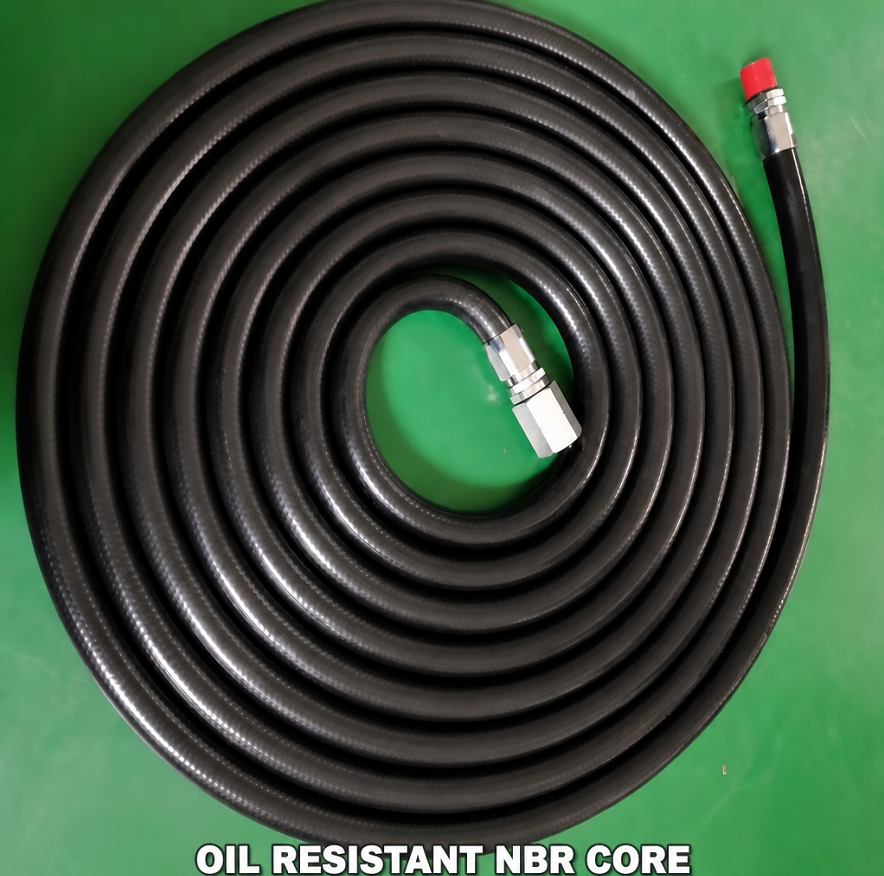

Oil-Resistant Compound, Full Fuel Compatibility: The NBR oil-resistant inner tube handles gasoline, diesel, methanol gasoline and ethanol gasoline — a true oil resistant rubber fuel hose for multi-fuel gas stations.
Steel Wire Braid, Low Elongation & Long Life: Wire braided reinforcement delivers low elongation and high pulse resistance, compliant with the SAE J30R7 fuel hose standard for long-term reliability.

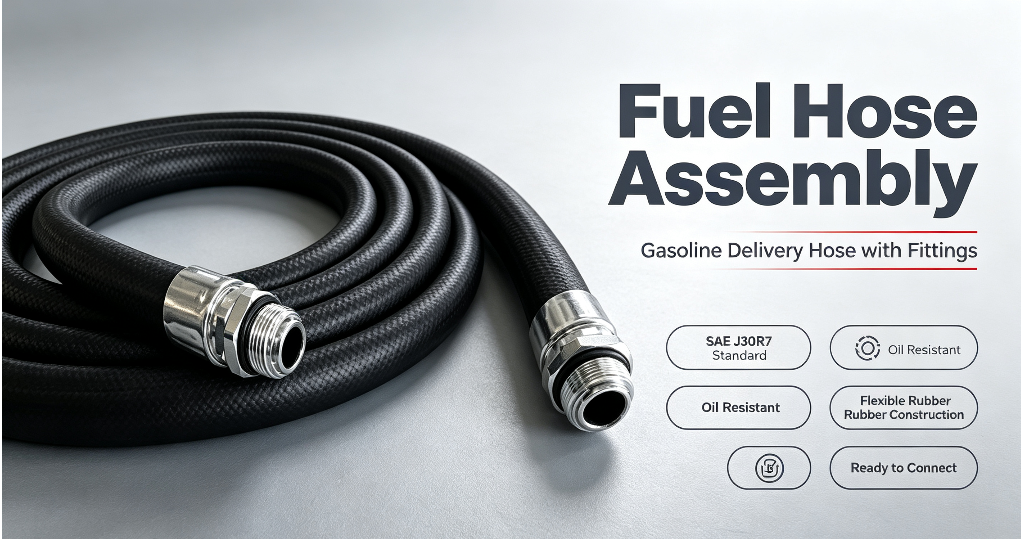

Factory Crimped Assemblies, Plug & Use: Crimped hose assemblies with clamps / couplings / filter available — ready-to-install fuel dispenser hose without on-site assembly leakage risk.
Wide Temperature Range: -40°C to 60°C working range covers cold and tropical gas station conditions; oil- and ozone-resistant cover extends service life.

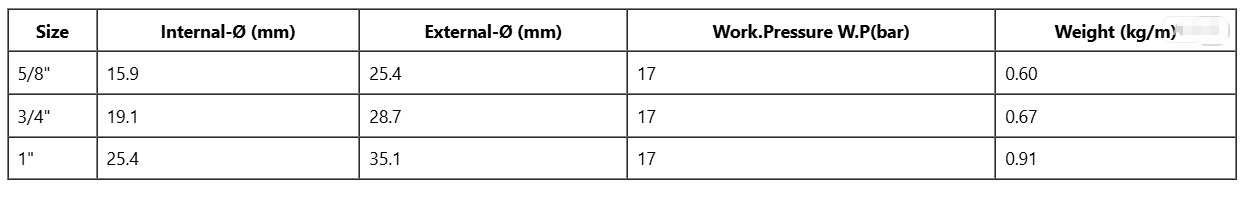

Complete Size Range, Fast Delivery: 5/8", 3/4" and 1" (I.D. 15.9/19.1/25.4mm) with stock and customization options for gas station equipment maintenance.
Gas Station Fuel Dispensers: As the fuel dispenser hose connecting nozzle and pump, conveying gasoline and diesel safely within fuel filling systems.
Fuel Pumps & Dispensing Nozzles: Wire braided fuel delivery hose paired with nozzles and metering pumps, pressure- and bend-resistant for efficient fueling.
Oil Depots & Petroleum Dispensing Systems: Oil resistant rubber fuel hose for loading/unloading and long-distance fuel transfer in petroleum dispensing systems.
Ethanol Gasoline & Environmental Fuels: Compatible with methanol gasoline, ethanol gasoline and new fuels, covering multi-fuel gas station scenarios.
Which fuels can this fuel dispenser hose convey? Gasoline, diesel, fuel oil, methanol gasoline, ethanol gasoline and new environmental fuels. As a standard fuel delivery hose for gas station equipment, the NBR oil-resistant tube ensures multi-fuel compatibility.
What standard does it meet? Temperature and pressure? It complies with the SAE J30R7 fuel hose standard; working temperature -40°C to 60°C and working pressure 17bar per spec sheet. Contact the factory for custom higher-temperature or higher-pressure options.
Can you supply assembled hoses? Sizes? Yes — factory crimped assemblies with clamps, couplings and filter are available. Sizes: 5/8", 3/4" and 1" (I.D. 15.9/19.1/25.4mm) with customizable length.
