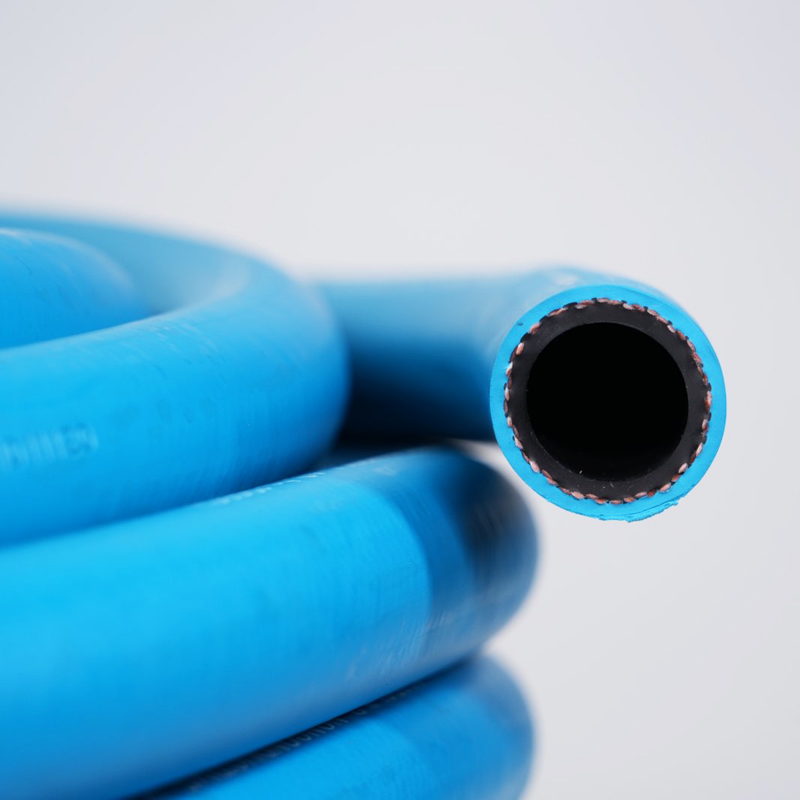

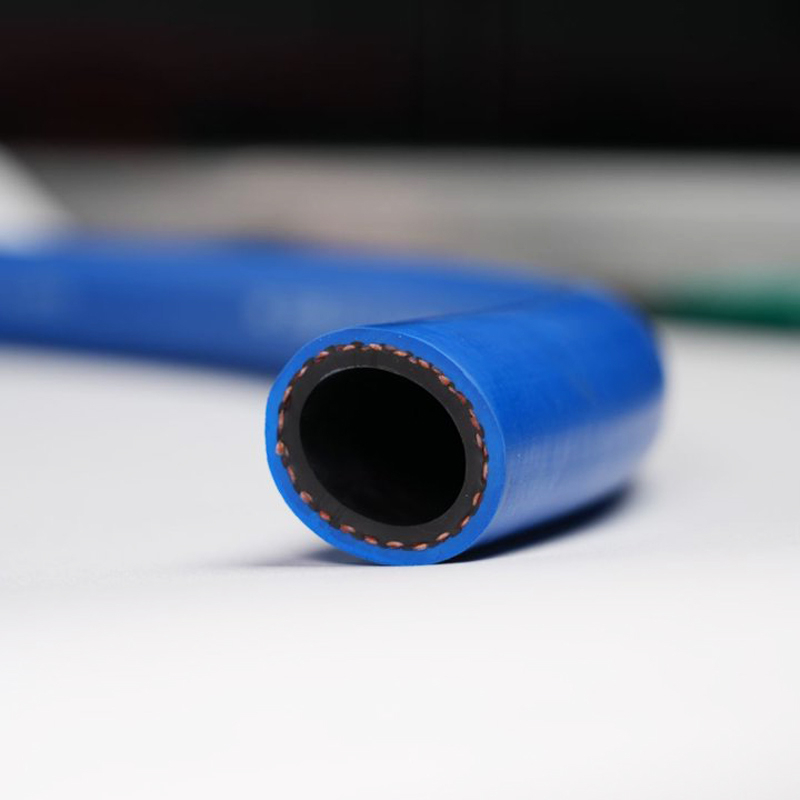

Our General Purpose Hose is an insulated, cost-effective industrial fluid transfer solution engineered for high-stakes air and water delivery across rigorous working environments. Built with a smooth low-resistance synthetic rubber inner tube, high-strength synthetic fiber mesh reinforcement layer, and specialized wear-resistant rubber outer cover, this hose delivers unrivaled durability and consistent performance in heavy-duty conditions. Rated non-conductive up to 6000V, with a wide operating temperature range of -40°C to 120°C, and a standard working pressure of 20 bar (300PSI), our insulated general purpose air and water hose is purpose-built for industrial users that demand long-lasting, safe, and efficient fluid transfer. Unlike consumer-grade alternatives, this hose is exclusively designed for industrial and commercial operational use, with no retail or residential applications.
Our high-performance, non-conductive hose solutions are engineered to meet the demanding requirements of heavy-duty industrial environments. Designed for superior reliability, our products serve as the backbone for critical fluid and air transfer systems:
Industrial Manufacturing & Pneumatic SystemsAs a professional-grade pneumatic air hose, this product ensures optimized airflow for air compressors and automated production lines. It minimizes pressure drops, facilitating uninterrupted operations in high-cycle manufacturing settings.
Construction & Open-Pit MiningBuilt to endure the harshest field conditions, our general purpose rubber hose features a specialized wear-resistant cover that excels against heavy drag, constant abrasion, and extreme outdoor weather, making it the preferred choice for large-scale infrastructure projects.
Large-Scale Agricultural OperationsEngineered with high UV and ozone resistance, this hose provides long-term service in commercial agricultural facilities, supporting a variety of needs from complex irrigation systems to heavy-duty pneumatic equipment operation.
Industrial Cooling & Utility SystemsWith a 6000V non-conductive rating, this hose is essential for water-cooled cable systems and sensitive electrical infrastructure. It functions as a highly reliable industrial water hose, ensuring safe, consistent performance near energized equipment without the risk of electrical conductivity.
| Size | Inside diameter I.D(mm) | Outside diameter O.D (mm) | Work pressure W.P(bar) | Burst pressure B.P (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) |
|---|---|---|---|---|---|---|---|
| 1/4" | 6.4 | 13.0 | 20 | 80 | 50 | 0.14 | 100 |
| 5/16" | 7.9 | 15.0 | 20 | 80 | 60 | 0.17 | 100 |
| 3/8" | 9.5 | 17.0 | 20 | 80 | 70 | 0.20 | 100 |
| 12mm | 12.0 | 19.5 | 20 | 80 | 100 | 0.27 | 100 |
| 1/2" | 12.7 | 21.0 | 20 | 80 | 100 | 0.28 | 100 |
| 15mm | 15.0 | 23.0 | 20 | 80 | 120 | 0.32 | 60 |
| 5/8" | 15.9 | 24.0 | 20 | 80 | 120 | 0.32 | 60 |
| 3/4" | 19.0 | 28.0 | 20 | 80 | 150 | 0.34 | 60 |
| 1" | 25.4 | 36.0 | 20 | 80 | 200 | 0.68 | 60 |
| 1-1/4" | 31.8 | 43.5 | 20 | 80 | 250 | 0.90 | 40 |
| 1-1/2" | 38.1 | 52.0 | 20 | 80 | 300 | 1.20 | 40 |
| 1-5/8" | 41.0 | 54.0 | 20 | 80 | 320 | 1.30 | 40 |
| 1-3/4" | 45.0 | 58.0 | 20 | 80 | 350 | 1.50 | 40 |
| 2" | 50.8 | 66.0 | 20 | 80 | 400 | 2.10 | 40 |
| 2-1/2" | 63.5 | 80.0 | 10 | 40 | 500 | 2.80 | 40 |
| 3" | 76.2 | 93.0 | 10 | 30 | 760 | 3.60 | 40 |
Our high pressure general purpose industrial hose adheres to strict international industrial standards, including ISO 1436 for industrial hose performance, IEC 60243 for 6000V electrical insulation validation, and regional safety norms for industrial fluid transfer equipment. All materials comply with RoHS requirements for industrial use, with rigorous batch testing for wear resistance, ozone aging, and pressure stability to ensure consistent compliance across global industrial markets.
We offer tailored solutions exclusively for industrial operators, equipment OEMs, and bulk wholesale distributors. Our capabilities include custom length cutting, factory crimped end fittings, color matching for brand alignment, and full OEM branding services to match your equipment specifications. For bulk orders, we provide tiered volume pricing, dedicated inventory stockpiling, and flexible lead times to support ongoing operational needs, with no restrictive minimum order limits for qualified industrial partners. This product is not available for retail or residential purchase.
Our standard General Purpose Hose offers a working pressure of 20 bar (300PSI) for sizes up to 2", with a 4:1 safety burst pressure ratio for maximum operational safety.
Yes. The hose is formulated with UV and ozone anti-aging additives, maintaining flexibility and strength in extreme temperatures from -40°C to 120°C, with excellent resistance to cracking and hardening.

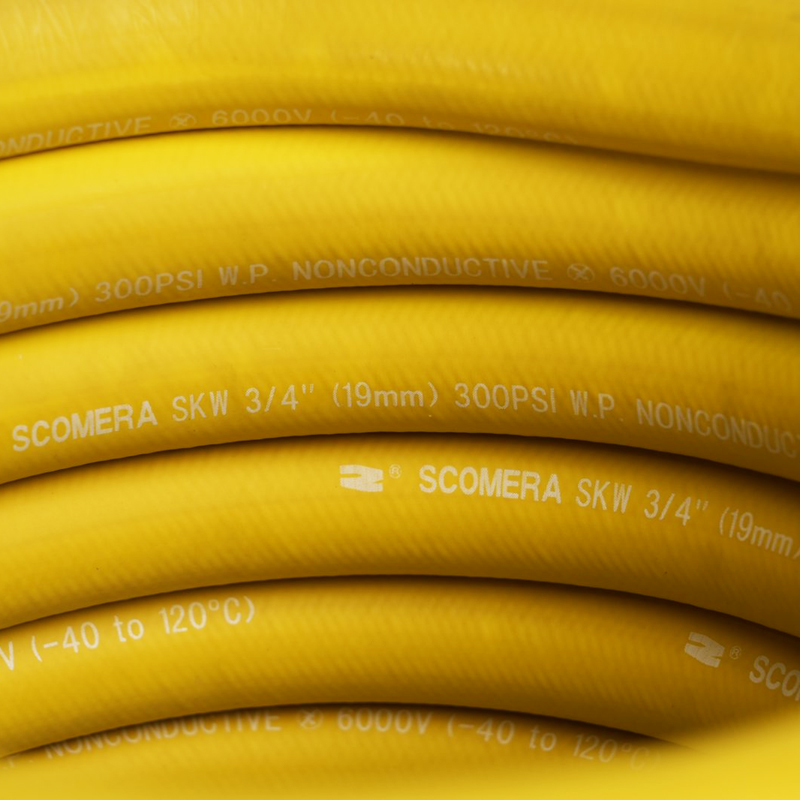

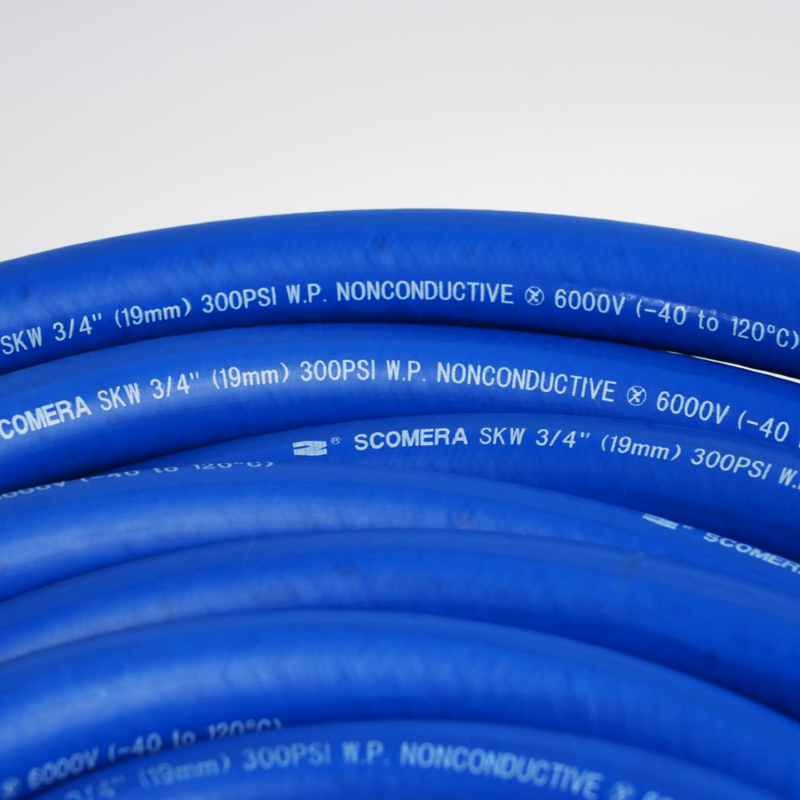

Yes, this industrial hose is rated non-conductive up to 6000V, making it safe for use around electrical equipment and high-voltage industrial infrastructure.
Contact our industrial sales team today to receive a free, no-obligation quote for your General Purpose Hose needs. Whether you require custom OEM solutions, bulk wholesale volumes, or technical specification guidance, our dedicated engineering and sales support team will respond within 24 hours with a tailored solution to match your operational requirements.
