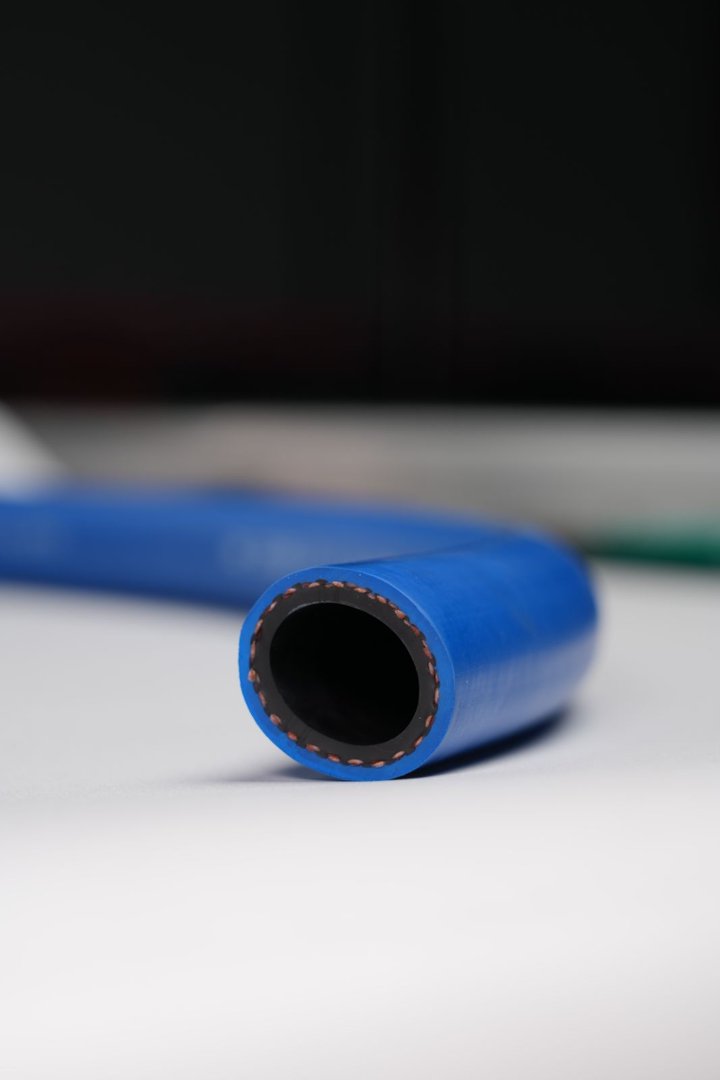

Cooling system failures carry compounding costs that extend far beyond a simple replacement part. A ruptured line in a data center causes catastrophic hardware damage, while a minor leak in industrial manufacturing leads to unplanned downtime and lost production. Specifying fluid routing components requires precision. Selecting the wrong material or specification accelerates degradation, introduces leaks, and destroys system efficiency. Engineers and maintenance professionals need a systematic framework for evaluating options. You must analyze chemical compatibility, thermal limits, pressure dynamics, and application-specific constraints before installation. This guide provides an engineering-first approach to selecting the exact fluid routing components your equipment demands. We evaluate the specific demands of high-vibration environments, tight routing envelopes, and aggressive coolant chemistries. By matching the physical and chemical properties of the routing lines to the operational realities of the machinery, you prevent premature failures and maintain optimal thermal transfer rates across the entire cooling loop.
Application Dictates Form: Hoses are required over rigid pipes when connecting moving points, absorbing vibration in a servo system, or navigating complex, confined routing paths.
Chemical Compatibility is Non-Negotiable: The inner tube material must perfectly match the coolant chemistry (e.g., water-glycol, dielectric fluids) to prevent internal degradation.
Material Trade-Offs Drive Value: Balancing flexibility, temperature resistance, and pressure ratings determines whether an industrial rubber hose, silicone, or PTFE is the optimal choice.
System Integrity Relies on Connections: A high-quality hose will still fail if paired with incompatible fittings or incorrect clamping mechanisms.
Fluid routing follows a basic mechanical rule. You should use rigid coolant pipes for fixed, straight paths where no movement occurs. Conversely, you must specify a flexible cooling hose for routes that connect moving components. Flexible lines accommodate thermal expansion and contraction seamlessly. Rigid pipes crack under these dynamic stresses. Evaluate your installation environment to determine where movement occurs. When a machine cycles, the chassis flexes, and internal components shift slightly. A rigid pipe bolted between two independently moving structures will eventually suffer fatigue failure at the weld joints or connection points. Flexible routing absorbs this displacement. You must map out the entire fluid path and identify every point where mechanical movement, thermal expansion, or structural shifting will occur during normal operation.
High-frequency vibrations destroy rigid connections over time. Flexible routing isolates these vibrations effectively. Heavy machinery and high-precision equipment rely on flexible lines to protect sensitive components. For example, a servo system generates constant micro-vibrations during operation. A properly specified flexible line absorbs this kinetic energy, preventing stress fractures in adjacent hardware and manifolds. In industrial stamping presses or heavy milling machines, the vibration profile can be severe. Rigid piping transmits this vibration directly into the heat exchanger or pump housing, leading to cracked welds and blown seals. By integrating flexible sections at strategic points, you decouple the vibration source from the rest of the cooling loop. This dampening effect extends the lifespan of the entire thermal management system.
Modern equipment designs pack more components into smaller footprints. Tight installation envelopes necessitate flexible routing solutions. You must navigate complex paths without compromising flow rates. Exceeding the minimum bend radius risks kinking, which restricts coolant flow and causes overheating. Select materials engineered for tight bend radii when working inside compact chassis or engine compartments. When routing lines through a crowded server rack or a densely packed engine bay, you rarely have the luxury of straight runs. The routing path must weave around structural supports, electrical harnesses, and other mechanical assemblies. Flexible lines allow you to snake through these obstacles. However, you must calculate the minimum bend radius of the selected material. Forcing a line into a bend tighter than its rated limit flattens the profile, creating a choke point that starves the system of coolant.
You must match the inner tube material with your specific heat transfer fluid. Standard water-glycol mixtures require different polymers than advanced dielectric fluids. Mismatched materials lead to plasticizer leaching, polymer swelling, or internal erosion. These issues contaminate the coolant loop and clog heat exchangers. Always consult the manufacturer's chemical resistance chart before finalizing a specification. If you run an aggressive synthetic coolant through a standard EPDM line, the chemical reaction will break down the inner wall. This degradation releases particulate matter into the fluid stream, which eventually lodges in the narrow channels of the radiator or cold plate. Furthermore, the weakened tube wall becomes susceptible to pressure blowouts. You must verify compatibility not just with the base fluid, but with all anti-corrosion additives and biocides present in the mixture.
Temperature ratings dictate material survival. You must differentiate between continuous operating temperatures and intermittent peak limits. A material might survive a short spike to 150°C but degrade rapidly if held there continuously. Map the normal operating temperature of your fluid and compare it against the continuous rating of the selected polymer. Heat accelerates the aging process of elastomers. Prolonged exposure to temperatures above the rated limit bakes the plasticizers out of the material, leaving it hard and brittle. Once the material loses its elasticity, it can no longer expand and contract with pressure changes, leading to cracks and leaks. You must also account for external heat sources. A line routed near an exhaust manifold or a high-power electrical component will experience higher ambient temperatures, requiring a material with a higher thermal threshold or the addition of a protective heat shield.
System pressure dictates reinforcement requirements. Calculate your maximum working pressure and apply a safety margin. Industry standards typically demand a 3:1 or 4:1 burst-to-working pressure ratio. Pressure spikes, or water hammer effects, stress the internal reinforcement layers. Adequate safety margins ensure longevity and prevent catastrophic blowouts during unexpected pressure surges. To properly evaluate pressure requirements, follow these steps:
Determine the maximum continuous operating pressure of the system pump.
Identify any potential pressure spikes caused by rapidly closing valves or sudden pump startups.
Multiply the highest anticipated pressure spike by the required safety factor (e.g., 4x) to establish the minimum burst pressure rating.
Verify that the selected fitting and clamp combination can withstand the calculated burst pressure without slipping or leaking.
Account for temperature derating, as materials lose pressure resistance as operating temperatures increase.
Closed-loop systems demand low-permeability materials. Coolant loss through the tube wall degrades system performance over time. Air ingress introduces bubbles, which cause cavitation in pumps and reduce thermal transfer efficiency. Evaluate permeability ratings carefully, especially when routing volatile fluids or operating in vacuum conditions. In precision cooling applications, even minor fluid loss requires frequent maintenance and top-offs. Furthermore, outgassing—the release of volatile organic compounds from the polymer itself—can contaminate sensitive optical or electronic environments. When specifying lines for cleanrooms or high-vacuum systems, you must select materials specifically engineered for low outgassing and near-zero permeability to maintain system integrity.
Cross-reference industry standards like SAE, ISO, and ASTM. Matching exact OEM dimensions guarantees proper fit and sealing. Certifications validate material performance under specific testing conditions. Using certified components ensures regulatory compliance and maintains equipment warranties. When replacing a factory component, you cannot simply match the inner diameter and hope for the best. The replacement must meet or exceed the original performance specifications. Failure to adhere to these standards can result in rejected warranty claims and severe liability issues if a failure causes property damage or injury.
Material Type | Primary Coolant Compatibility | Temperature Range | Key Advantage | Primary Limitation |
|---|---|---|---|---|
EPDM Rubber | Water, Ethylene/Propylene Glycol | -40°C to 125°C | Excellent ozone and weather resistance | Incompatible with oil-based fluids |
NBR (Nitrile) | Oil-based coolants, petroleum fluids | -30°C to 100°C | High oil and solvent resistance | Poor resistance to ozone and UV exposure |
Silicone | Water, Glycol mixtures | -50°C to 200°C+ | Extreme temperature tolerance, flexibility | High permeability, low abrasion resistance |
PTFE | Aggressive chemicals, dielectric fluids | -70°C to 260°C | Universal chemical resistance, high purity | Stiff bend radius, requires crimped fittings |
An industrial rubber hose remains the workhorse for standard applications. EPDM offers excellent weather and ozone resistance, making it ideal for water and ethylene/propylene glycol mixtures. NBR handles oil-based fluids better. However, standard rubber is generally unsuitable for extreme high temperatures or highly aggressive synthetic coolants. When working in general manufacturing or facility cooling, EPDM provides a reliable, cost-effective solution. It handles the standard pressures and temperatures found in most chiller loops and HVAC systems. NBR steps in when the cooling fluid contains lubricating oils or when the external environment exposes the line to petroleum-based solvents. You must clearly identify the fluid chemistry before selecting between these two common elastomers.
Silicone excels in high-temperature environments. It maintains long-term flexibility even after years of thermal cycling. Performance automotive and heavy machinery often utilize silicone. The trade-off involves higher permeability to water, requiring more frequent fluid top-offs. Silicone also possesses lower abrasion resistance compared to EPDM, necessitating protective sleeving in high-friction areas. If you route a silicone line against a vibrating metal chassis without a protective chafe guard, the metal will wear through the soft silicone jacket rapidly. Despite this physical vulnerability, silicone remains the superior choice for applications where temperatures consistently exceed 150°C, as standard rubber will harden and crack under those conditions.
PTFE handles aggressive chemicals and extreme temperatures flawlessly. Applications requiring high purity rely on PTFE to prevent fluid contamination. The primary trade-offs include a stiffer bend radius and higher upfront costs. PTFE lines also require specialized crimped fittings, as standard worm-gear clamps cannot compress the rigid tube effectively. You specify PTFE when failure is not an option and the chemical environment destroys all other polymers. In semiconductor manufacturing or aerospace applications, the inert nature of PTFE ensures that no plasticizers or particulates leach into the cooling fluid. The installation requires precise measurement and specialized crimping equipment, but the resulting assembly offers unmatched durability and chemical resistance.
Data centers, supercomputers, and EV battery thermal management systems operate under strict constraints. An electronic cooling hose requires specific dielectric properties. Non-conductive materials prevent short circuits if a leak occurs. These environments demand zero-leak tolerances, ultra-low outgassing, and strict UL flammability ratings to protect millions of dollars in hardware. When routing fluids directly over server blades or battery modules, you cannot risk condensation or micro-leaks. The materials must be engineered to maintain a perfect seal over years of continuous operation. Furthermore, the outer jacket must meet stringent fire safety standards to prevent the spread of flames in the event of a catastrophic facility fire.
Manufacturing environments subject equipment to harsh external conditions. Routing lines must feature high abrasion resistance to survive constant rubbing against chassis components. Tolerance to continuous flexing in high-duty cycles is mandatory. The outer cover must resist external environmental contaminants like cutting oils, harsh solvents, and UV exposure. A CNC machine or robotic arm moves continuously, dragging its cooling lines along cable tracks and over metal edges. The outer jacket must withstand this mechanical abuse without exposing the internal reinforcement layers. You must select materials with thick, durable covers or add external protective wraps to ensure the lines survive the physical realities of the factory floor.
Commercial fleets require components that survive brutal under-hood conditions. Thermal cycling degrades inferior materials quickly. Electrochemical degradation (ECD) attacks the internal tube near metal fittings, causing micro-cracks. Fleet specifications demand high-vibration tolerance and reinforced layers designed to resist ECD and prolonged heat exposure. When a diesel engine pulls a heavy load up a grade, the under-hood temperatures soar. The cooling lines must handle this intense heat while simultaneously absorbing the heavy vibrations of the engine block. ECD occurs when the coolant acts as an electrolyte between the engine block and the radiator, creating a small electrical charge that destroys the rubber from the inside out. Specifying lines with ECD-resistant inner tubes prevents this hidden failure mode.
Inspect existing lines to inform better purchasing decisions. Physical indicators reveal underlying system stresses. Check tight bends and curves where mechanical stress peaks. Evaluate tactile feedback. A healthy line feels firm but yielding. A failing line feels hard, brittle, soft, or spongy. These textures indicate severe thermal degradation or chemical attack. Bulging near the fittings suggests that the internal reinforcement has failed, allowing the pressure to balloon the outer jacket. If you observe a chalky residue on the outside of an EPDM line, it indicates ozone degradation. By identifying how and why the current lines are failing, you can adjust your specifications to select a more resilient material for the replacement.
Incorrect inner diameter (ID) selection ruins system efficiency. Undersizing restricts flow, increases system pressure, and reduces heat transfer capacity. Oversizing compromises fitting seals, leading to inevitable leaks. Always measure the fitting barb accurately and select an ID that provides a snug, interference fit before clamping. If you force a line over a barb that is too large, you stretch the internal reinforcement, weakening the structure and creating a potential rupture point. Conversely, if the ID is too large, the clamp must crush the material to create a seal, which distorts the tube and creates leak paths. Precision measurement of the fittings is a mandatory step before ordering replacement lines.
The flexible line is only one part of the assembly. Incompatible fittings cause premature failure. Select constant-tension clamps over standard worm-gear clamps for systems experiencing heavy thermal cycling. Constant-tension designs expand and contract with the material, preventing cold leaks. Match the polymer hardness to the barb design to ensure a permanent seal. A standard worm-gear clamp locks into a fixed diameter. When the system cools down, the rubber shrinks slightly, creating a gap between the clamp and the fitting. This results in a cold leak. Constant-tension clamps utilize a spring mechanism to maintain consistent pressure regardless of temperature fluctuations, ensuring a reliable seal across the entire operating range.
Evaluate the lifecycle value rather than just the initial purchase price. Cheap aftermarket alternatives often use inferior recycled polymers. These materials fail prematurely, causing expensive downtime. Source certified brands with proven performance histories. Verify material test reports and ensure the manufacturer stands behind their product with robust quality guarantees. When you purchase unverified components, you risk introducing weak links into a critical system. The cost of a single catastrophic failure far outweighs the savings gained by purchasing substandard routing lines. Always demand documentation proving that the materials meet the required industry standards and have passed rigorous pressure and temperature testing.
There is no universal solution for fluid routing. You must specify the most technically appropriate material for your exact fluid, temperature range, and routing environment. Default to EPDM for standard glycol mixtures, choose silicone for extreme heat, and mandate specialized dielectric synthetics for sensitive electronics.
Map your exact coolant chemistry and maximum operating pressures before selecting a material.
Consult manufacturer chemical compatibility charts to verify the inner tube resistance.
Measure your required bend radii and verify physical space constraints on the equipment.
Request engineering samples for physical validation and fitting tests prior to full installation.
A: A coolant pipe is rigid and used for fixed, straight paths. A cooling hose is flexible, designed to connect moving components, absorb vibrations, and navigate complex routing paths where rigid pipes would crack under mechanical stress.
A: You must consult the manufacturer's chemical resistance chart. Cross-reference the specific inner tube material with your exact coolant chemistry, including any anti-corrosion additives, to ensure it will not swell, degrade, or leach particulates.
A: Electronic applications require non-conductive, dielectric materials to prevent short circuits. They also demand ultra-low permeability, zero-leak tolerances, and strict flammability ratings to protect sensitive data center or battery hardware.
A: Replacement intervals depend on operating temperatures, vibration levels, and fluid chemistry. Inspect lines annually for hardening, sponginess, or abrasion. Replace them immediately if physical degradation is present, or follow the OEM's specified maintenance schedule.
A: Sponginess indicates chemical degradation or internal breakdown from incompatible fluids. Hardness or brittleness results from severe thermal cycling and heat exposure, which bakes the plasticizers out of the polymer over time.
A: Measure the outside diameter of the fitting barb where the line will attach using digital calipers. The inner diameter must match this measurement exactly to ensure a snug interference fit before applying the clamp.
