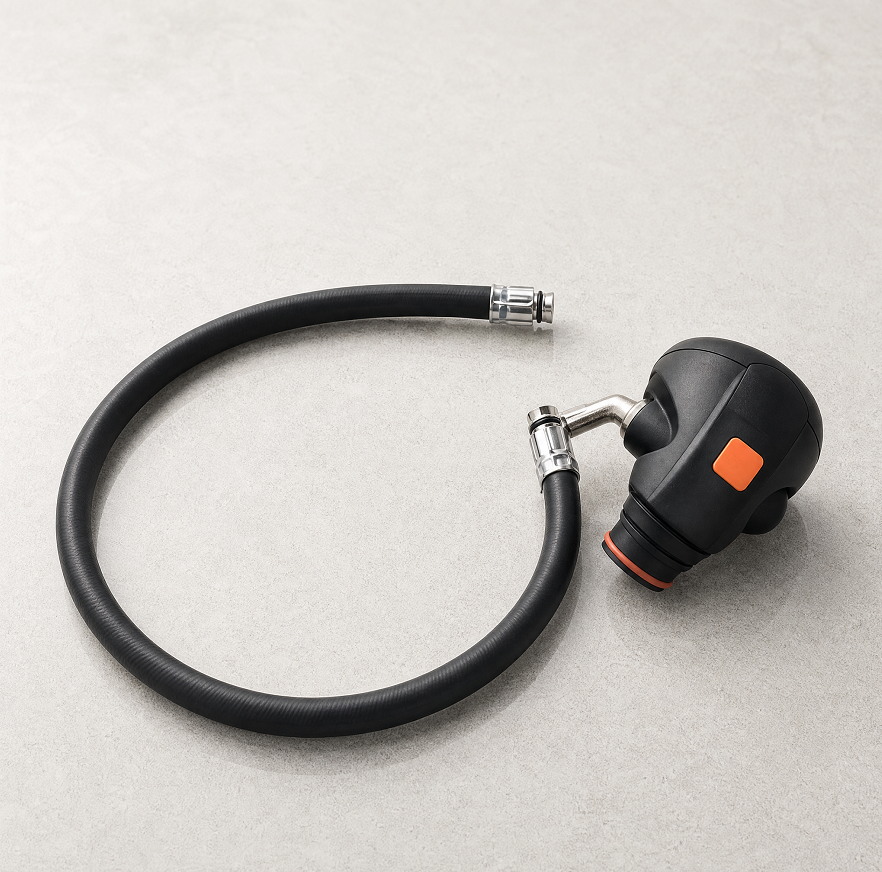

In supplied air setups, absolutely zero margin for error exists. Picking incorrect hardware never just causes minor operational bottlenecks. It creates critical life-safety and severe compliance failures. We must carefully distinguish standard pneumatic parts from dedicated life-support equipment. Facilities constantly navigate the tension between operational efficiency for quick changes and absolute security against accidental detachments. Selecting proper Breathing Air Hose Fittings means you must rigorously evaluate profile compatibility. You also need to assess locking mechanisms, material durability, and strict occupational safety regulations. This guide unpacks exactly how you can build a secure, compliant supplied air system. We will explore critical lock designs, various interchange profiles, and robust material choices. You will also learn vital maintenance routines to better protect your workforce in hazardous environments. Ultimately, this applied knowledge prevents catastrophic air loss while ensuring your operation remains fully certified and safe.
Standard shop-air fittings must never be used for breathing air lines due to cross-contamination risks and lack of safety locking mechanisms.
Selecting quick disconnect fittings requires matching the exact interchange profile (e.g., Schrader, CEJN, Rectus) to maintain system certifications.
Double-action or safety-lock designs are essential to prevent accidental disconnection caused by hose snagging in confined spaces.
Material selection (brass vs. stainless steel) dictates the fitting's lifespan in corrosive or highly abrasive industrial environments.
Many facilities mistakenly employ standard utility air couplings for critical life-support applications. This oversight introduces catastrophic risk into daily operations. Imagine a worker accidentally plugging a respirator line directly into a nitrogen or toxic gas manifold. Standard shop connectors lack distinct physical barriers to prevent this fatal cross-connection. Furthermore, basic pneumatic components often leak under dynamic movement. A slight pressure drop on a pneumatic tool reduces torque. A similar pressure drop on a supplied air respirator deprives the worker of vital oxygen. You must treat air-line components as critical safety gear, not bulk hardware.
Regulatory bodies globally mandate strict performance criteria for life-support systems. Organizations like NIOSH in the United States and CE under European EN standards rigorously test respirator assemblies. They certify the entire connected unit, never just isolated parts. When a factory receives certification, it covers the specific hose, regulator, and connector combination. Swapping factory-approved components for aftermarket alternatives immediately voids these safety approvals. This unauthorized modification transfers total legal liability directly to the facility. If an accident occurs, unauthorized hardware modifications guarantee severe regulatory fines and legal consequences.
Preventing tragic accidents requires foolproof physical engineering. Manufacturers design distinct, non-interchangeable profiles dedicated solely to human respiration systems. These specialized shapes physically prevent accidental connection to hazardous industrial gas lines. A standard shop air plug simply will not fit into a dedicated life-support socket. You must implement these incompatible profiles strictly across your entire site. Standardization eliminates human error during stressful emergency hookups or routine shift changes. Properly deployed Breathing Air Couplings guarantee users can only access purified, breathable air sources.
Traditional push-to-connect mechanisms offer rapid deployment. Workers easily connect these lines using one hand. This single-action movement drives high operational efficiency during shift transitions. However, a major safety caveat exists in hazardous environments. They remain highly susceptible to accidental release. If the release sleeve catches on scaffolding, structural steel, or heavy equipment, the line detaches instantly. This sudden detachment immediately cuts off the air supply. We advise strictly limiting single-action designs to highly controlled, stationary applications.

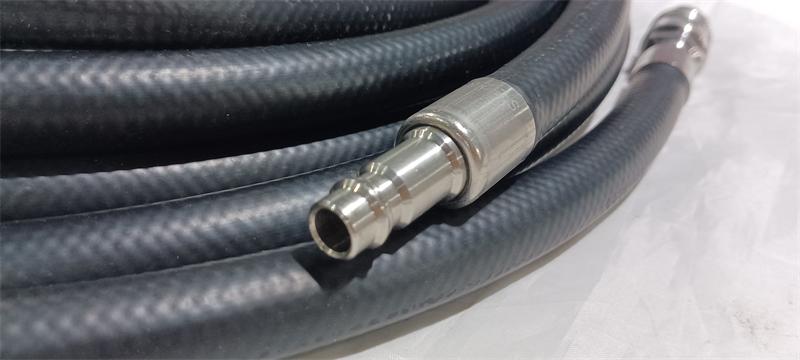

Confined space operations demand superior physical security. Double-action locks require a deliberate two-step disconnection sequence. First, the operator must push the plug inward. Second, they slide the outer sleeve backward. This intentional sequence physically prevents accidental disconnects caused by snagging or dragging hoses across rough surfaces. We consider this robust design the absolute industry standard for critical industrial applications. Any environment featuring limited egress routes or dangerous atmospheric conditions mandates these dual-action protective measures.
Pressurized hoses store immense potential energy. Disconnecting a fully pressurized line often causes the loose end to whip violently. This sudden recoil frequently injures nearby personnel or damages sensitive equipment. Safety venting designs solve this hazard brilliantly. They safely bleed all downstream pressure before allowing complete physical separation. This controlled venting mechanism protects operators from dangerous hose whip injuries. These specialized Quick Disconnect Fittings prove exceptionally valuable in high-pressure supply systems.
Matching the exact plug and socket profiles remains your most critical technical task. You cannot rely on a visual estimation. Common industry-standard profiles include Schrader, CEJN, and Rectus shapes. Each features unique locking ball grooves and pin dimensions. Warning: never adopt a "looks like it fits" approach. Forcing incompatible shapes together damages internal seals and restricts crucial airflow. Always consult your equipment manufacturer specifications to identify the exact required interchange standard before making any purchases.
Every connector introduces a minor restriction in the air path. Internal valve designs impact the total air volume delivered to the user. You must closely monitor the Cubic Feet per Minute (CFM) capabilities of each component. Calculating total system pressure drop ensures the worker receives adequate airflow at maximum hose length. Adding multiple extension lines multiplies this restriction effect. If you select restrictive hardware, the regulator will fail to deliver sufficient oxygen during heavy physical exertion.
Environmental conditions dictate component lifespan and reliability. You must match base metals and internal seals to your facility's unique hazards. General industrial environments allow standard materials, while chemical processing demands higher resilience. Using incorrect materials leads to rapid corrosion, dangerous leaks, and system failure.
Material Application Chart
Material Type | Key Advantages | Ideal Operating Environment |
|---|---|---|
Brass | Cost-effective, naturally non-sparking, resists basic rust. | General manufacturing, paint booths, standard indoor facilities. |
Stainless Steel | Superior corrosion resistance, exceptional physical durability. | Chemical washdowns, offshore oil rigs, highly corrosive zones. |
Buna-N (O-Ring) | Excellent tear resistance, handles standard compressed air well. | Standard temperature ranges, basic industrial exposure. |
Viton / EPDM (O-Ring) | High chemical resistance, broad temperature tolerance limits. | Extreme temperatures, heavy solvent or chemical vapor exposure. |
Properly matched Respirator Hose Fittings utilize specific O-ring compounds based on chemical exposure levels. For example, painting facilities require different seal compounds than offshore drilling platforms.
Facilities often mix plugs and sockets from different manufacturers to save money. This practice introduces severe operational risks. Even when two brands claim identical interchangeability, microscopic machining tolerances vary. Mixing brands frequently causes dangerous micro-leaks. It also accelerates premature wear on locking balls and induces sticking valves. For maximum safety, you should always source both male and female mating halves from the same reputable manufacturer.
Industrial atmospheres actively destroy moving metal parts. Abrasive dust acts like sandpaper inside the socket body. Paint overspray coats moving sleeves, effectively gluing locking mechanisms in place. Chemical solvents routinely degrade internal O-rings until they crack. You must implement robust dust caps and protective boots to shield these sensitive areas. Neglecting environmental protection guarantees sudden hardware failure when workers need air the most.
Many operators incorrectly assume solid metal parts last forever. They install them once and forget them. This hazardous blind spot leads to dangerous failures. You must establish baseline indicators to determine when hardware requires immediate retirement. Look for excessive play between mated halves. Listen carefully for faint hissing sounds near the connection point. Check if outer sleeves stick during operation. Any hesitation in the locking sequence signals internal damage.
Begin by identifying the OEM requirements governing your equipment. Review the documentation for your current supplied-air respirators (SAR) or self-contained breathing apparatus (SCBA) configurations. Note all NIOSH or CE certification numbers. You must document the exact internal diameter of your current hoses. This vital information forms your baseline procurement criteria. Skipping this audit often results in purchasing incompatible hardware.
You must thoroughly document all physical and chemical hazards present in the workspace. Note extreme temperature fluctuations. Document any chemical washdown procedures or solvent exposures. Assess the physical terrain carefully. Dragging lines over jagged concrete requires dramatically different hardware than smooth epoxy floors. This environmental map directly dictates whether you need brass or stainless steel components.
Safety demands absolute consistency across the entire plant. Ensure the chosen breathing air profile remains entirely distinct from any other utility lines. Check your water, nitrogen, and shop-air manifolds. If any utility line shares a profile with your life-support gear, you must change it immediately. Facility-wide standardization acts as a physical barrier against catastrophic user error. When you use uniform Hose Connectors, training becomes simpler and safer.
Never purchase life-support hardware blindly. Require your vendors to supply comprehensive technical documentation before procurement. Ask for certified flow charts showing CFM drops. Request formal pressure ratings verifying safe operating limits. Most importantly, demand compliance documentation proving the parts meet necessary occupational safety standards. Trustworthy suppliers eagerly provide this testing data.
Purchasing life-support hardware is an ongoing exercise in strict risk mitigation, not mere component sourcing.
You must prioritize double-action safety locking mechanisms to prevent accidental disconnections in hazardous spaces.
Exact profile matching ensures you maintain critical safety certifications and adequate oxygen flow rates.
Matching materials to environmental threats yields maximum operational reliability and the highest worker safety levels.
Your team's lives depend on the integrity of their air supply. We urge you to proactively audit your current air line setups today. Consult with a fluid routing specialist to rigorously verify your system's compliance. Replace worn components immediately to ensure your facility maintains a zero-margin-for-error safety culture.
A: No. Standard compressor hardware lacks essential safety locking mechanisms, risking accidental disconnects. They also introduce severe cross-contamination risks if workers plug into industrial gases. Most importantly, using unapproved standard hardware immediately voids NIOSH or CE respirator safety certifications.
A: Single-action models release the connection with one simple pull of the outer sleeve. Double-action designs require a deliberate two-step sequence: you must push the plug in, then pull the sleeve back. This dual sequence physically prevents accidental disconnects caused by snagging.
A: You must consult your specific respirator manufacturer’s technical specifications. Never rely on visual matching, as similar profiles often differ microscopically. Use digital calipers or refer to original equipment part numbers to confirm the exact necessary interchange standard.
A: Replacement schedules depend entirely on environmental wear, not strict calendar timeframes. You should replace them immediately if you detect any air leakage, visible corrosion, or excessive play. Retreat parts instantly if the locking sleeve no longer actuates smoothly.
